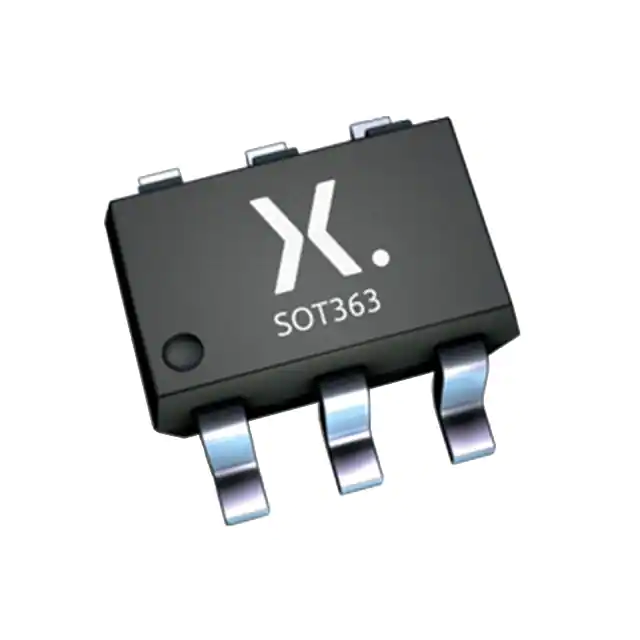

74LVC2G07GW The Nexperia USA Inc. 74LVC2G07GW is a non-inverting buffer with open drain outputs. It operates from a 1.65V to 5.5V supply.
Mfr Part #:

74LVC2G07GW

Available from 1 distributors
Mfr Name: Nexperia USA Inc.
Nexperia USA Inc.
The Nexperia USA Inc. 74LVC2G07GW is a non-inverting buffer with open drain outputs. It operates from a 1.65V to 5.5V supply.
✓ Total Stock: 160 pcs
$ Price Range: $1.20

74LVC2G07GW Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
160 pcs
On Request
160 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

74LVC2G07GW Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Lead Spacing
Lead Style
Logic Type
Mounting Type
Number of Elements
Operating Temperature
Output Type
SVHC Present
Storage Temperature
Supplier Device Package
Tape & Reel
Voltage Supply
View Similar Products (0)

74LVC2G07GW Description

Short technical summary and product information.

The 74LVC2G07GW from Nexperia USA Inc. is a dual-channel, non-inverting buffer featuring open drain outputs. This integrated circuit is designed for logic applications and operates within a wide supply voltage range of 1.65V to 5.5V.



Key electrical characteristics include two elements, each handling one bit, with a maximum output current of 32mA. The device is specified for operation across a broad temperature range of -40°C to 125°C, making it suitable for various environmental conditions. It is available in a compact 6-TSSOP package, designed for surface mounting.



This buffer is part of the 74LVC series, known for its low voltage operation and high performance. Its open drain output configuration allows for flexible interfacing with different voltage level systems. The component is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1.

74LVC2G07GW Quick Information

Product Type: Buffer, Driver, Receiver, Transceiver
Series: 74LVC
Canonical Name: Nexperia USA Inc. 74LVC2G07GW Buffer, Non-Inverting
Subcategory: Buffers, Drivers, Receivers, Transceivers

74LVC2G07GW Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

74LVC2G07GW Estimated Pricing

Qty Low High
1+ $1.20 $1.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

74LVC2G07GW Features

  • Dual non-inverting buffer with open drain outputs.
  • Wide operating voltage from 1.65V to 5.5V.
  • Extended temperature range of -40°C to 125°C.
  • Compact 6-TSSOP surface mount package.
  • RoHS3 compliant for environmental considerations.

74LVC2G07GW Applications

  • Logic level translation circuits.
  • Signal buffering and distribution.
  • Interfacing with microcontrollers.
  • General purpose digital logic.

74LVC2G07GW FAQs

6 frequently asked questions generated from this part’s specifications.
What is the supply voltage range of the 74LVC2G07GW?

The supply voltage range is 1.65V to 5.5V.

What is the operating temperature range of the 74LVC2G07GW?

The operating temperature range is -40°C to 125°C.

What package does the 74LVC2G07GW come in?

The package is 6-TSSOP, also compatible with SC-88 and SOT-363.

How many buffers are in the 74LVC2G07GW?

The IC contains two independent non-inverting buffers.

What is the output type of the 74LVC2G07GW?

The outputs are open drain, non-inverting.

What is the maximum sink current per output?

Each output can sink up to 32 mA.
