| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
16,020 pcs
|
16020 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Latch-up Performance | |
| Logic Type | |
| Mounting Type | |
| Number of Circuits | |
| Number of Inputs | |
| Operating Temperature | |
| Output Type | |
| Schmitt Trigger Input | |
| Supplier Device Package | |
| Supplier Package | |
| Voltage |
The 74LVC1G58GW,125 from Nexperia is a versatile configurable multiple function gate designed for low-power applications. It features Schmitt-trigger inputs, allowing it to be configured as various logic functions including AND, OR, NAND, NOR, XOR, inverter, and buffer using its 3-bit input.
This device supports a wide supply voltage range from 1.65 V to 5.5 V, enabling direct interface with TTL levels and use in mixed 3.3 V and 5 V environments. It boasts high noise immunity and an output drive of ±24 mA at 3.0 V. The IOFF circuitry provides partial power-down mode operation, preventing backflow current when the device is powered down.

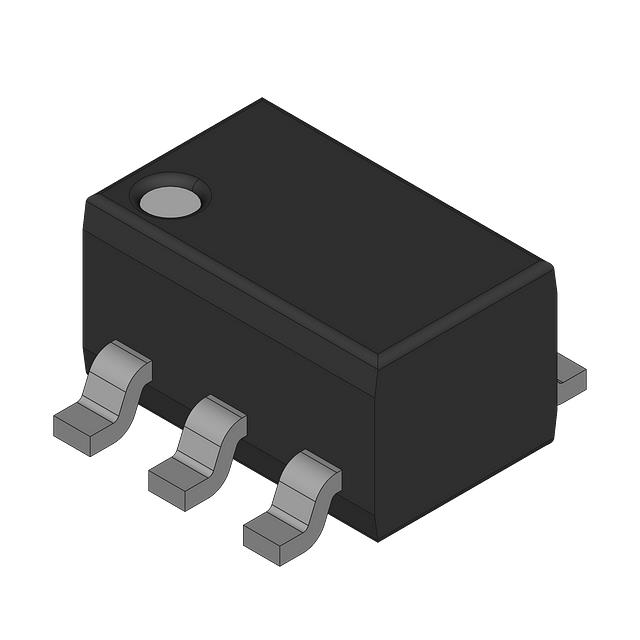

With overvoltage tolerant inputs up to 5.5 V and latch-up performance exceeding 250 mA, the 74LVC1G58GW,125 offers robust performance. It is specified for operation across a wide temperature range of -40 °C to +125 °C. The component is available in a 6-TSSOP surface mount package.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.25 | $0.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage range is 1.65 V to 5.5 V.
The operating temperature range is -40 °C to +125 °C.
It is available in a 6-TSSOP, SC-88, SOT-363 package.
Yes, it is RoHS3 Compliant.
