| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10,020 pcs
|
10020 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Clock Frequency | |
| Current | |
| Function | |
| Input Capacitance | |
| Latch-up Performance | |
| Max Propagation Delay @ V, Max CL | |
| Mounting Type | |
| Number of Bits per Element | |
| Number of Elements | |
| Operating Temperature | |
| Output Type | |
| Supplier Device Package | |
| Supplier Package | |
| Trigger Type | |
| Type | |
| Voltage |
This Nexperia 74LVC1G175GW-Q100H is a single D-type flip-flop with an asynchronous active LOW master reset input. Data is transferred to the Q output on the low-to-high transition of the clock pulse. The device is designed for low-power, low-voltage applications and supports a wide supply voltage range from 1.65 V to 5.5 V, making it suitable for mixed 3.3 V and 5 V environments.
Key electrical characteristics include a maximum clock frequency of 200 MHz and a maximum propagation delay of 4 ns at 5V and 50pF. The flip-flop offers ±24 mA output drive at 3.0 V and features Schmitt trigger action at all inputs for tolerance to slower input rise and fall times. It also includes IOFF circuitry for partial power-down mode operation.

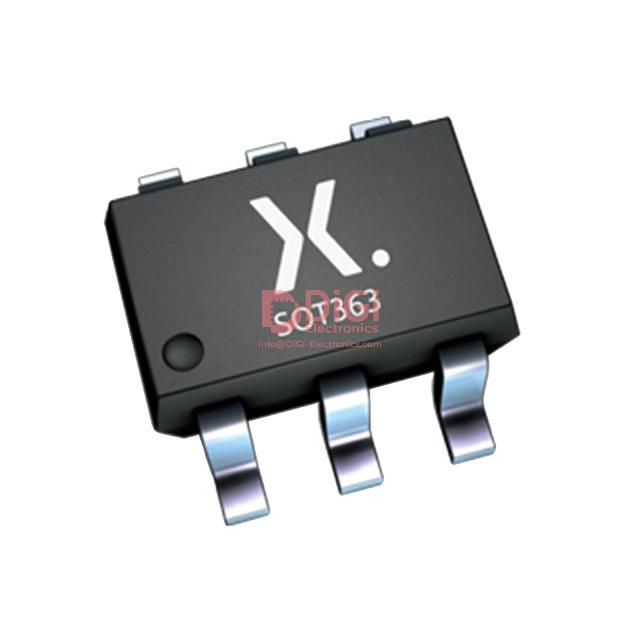

The 74LVC1G175GW-Q100H is available in a compact 6-TSSOP, SC-88, or SOT-363 package, suitable for surface mounting. It is specified for operation over an extended temperature range of -40 °C to +125 °C (TA). This product has been qualified to AEC-Q100 (Grade 1) standards, making it suitable for automotive applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.23 | $1.23 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 1.65 V to 5.5 V.
The maximum clock frequency is 200 MHz.
The package is a 6-TSSOP, SC-88, or SOT-363.
The operating temperature range is -40°C to +125°C.
Yes, it is RoHS3 Compliant.
