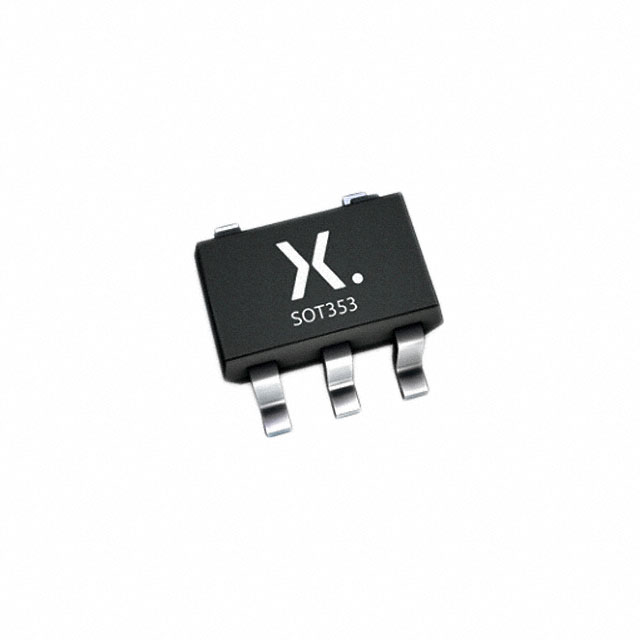

74LVC1G07GW The Nexperia USA Inc. 74LVC1G07GW is a non-inverting buffer with an open drain output. It operates over a wide voltage range and temperature spectrum.
Mfr Part #:

74LVC1G07GW

Available from 6 distributors
Mfr Name: Nexperia USA Inc.
Nexperia USA Inc.
The Nexperia USA Inc. 74LVC1G07GW is a non-inverting buffer with an open drain output. It operates over a wide voltage range and temperature spectrum.
✓ Total Stock: 20,426 pcs
$ Price Range: $1.20

74LVC1G07GW Available from 6 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

74LVC1G07GW Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Logic Type
Mounting Type
Number of Elements
Operating Temperature
Output Type
Supplier Device Package
Voltage Supply
View Similar Products (0)

74LVC1G07GW Description

Short technical summary and product information.

The 74LVC1G07GW from Nexperia USA Inc. is a single-element, non-inverting buffer designed for logic applications. It features an open drain output, allowing for flexible output configurations.



This buffer operates with a supply voltage ranging from 1.65V to 5.5V, making it suitable for various system designs. The device is specified for an operating temperature range of -40°C to 125°C, ensuring reliable performance in demanding environments. It is available in a compact 5-TSSOP package, suitable for surface mount applications.



The 74LVC1G07GW is part of the 74LVC series, known for its low voltage operation and high performance. Its open drain output requires an external pull-up resistor for proper operation when driving high logic levels. This component is ideal for use in digital circuits requiring buffering or signal level shifting.



Environmental compliance includes RoHS3 compliance and REACH unaffected status. The component is supplied in tape and reel or cut tape packaging.

74LVC1G07GW Quick Information

Product Type: Buffer, Driver, Receiver, Transceiver
Series: 74LVC
Canonical Name: Nexperia USA Inc. 74LVC1G07GW Buffer, Non-Inverting
Subcategory: Buffers, Drivers, Receivers, Transceivers

74LVC1G07GW Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

74LVC1G07GW Estimated Pricing

Qty Low High
1+ $1.20 $1.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

74LVC1G07GW Features

  • Non-inverting buffer with open drain output.
  • Wide supply voltage range: 1.65V to 5.5V.
  • Extended operating temperature: -40°C to 125°C.
  • Compact 5-TSSOP surface mount package.
  • RoHS3 compliant and REACH unaffected.

74LVC1G07GW Applications

  • Used for general-purpose logic buffering.
  • Ideal for level translation between voltage domains.
  • Suitable for wired-OR bus connections.
  • Applicable in industrial and automotive systems.

74LVC1G07GW FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the 74LVC1G07GW?

The operating voltage range is 1.65V to 5.5V.

What type of output does the 74LVC1G07GW have?

The 74LVC1G07GW has an open drain output.

What is the operating temperature range for this buffer?

The operating temperature range is -40°C to 125°C.

What package is the 74LVC1G07GW supplied in?

It is supplied in a 5-TSSOP package.

Is the 74LVC1G07GW RoHS compliant?

Yes, it is RoHS3 Compliant.
