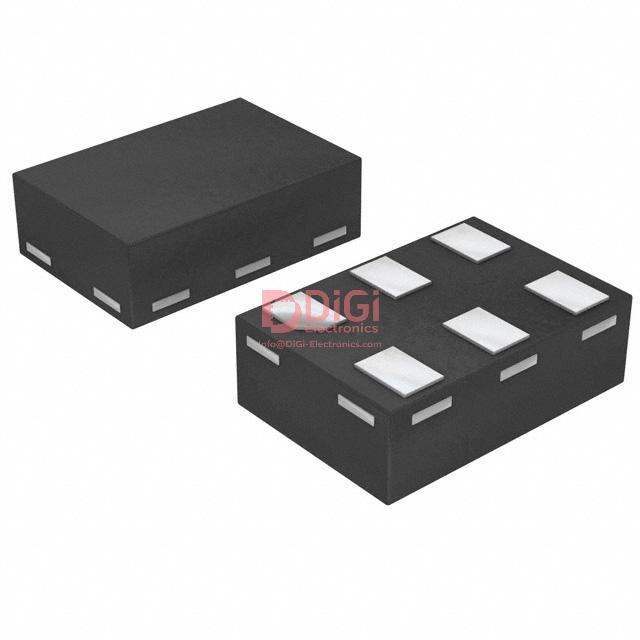

74LVC1G02GM The Nexperia 74LVC1G02GM is a single-channel, 2-input NOR gate IC. It operates from a 1.65V to 5.5V supply and features a 6-XSON surface mount package.
Mfr Part #:

74LVC1G02GM

Available from 2 distributors
Mfr Name: Nexperia USA Inc.
Nexperia USA Inc.
The Nexperia 74LVC1G02GM is a single-channel, 2-input NOR gate IC. It operates from a 1.65V to 5.5V supply and features a 6-XSON surface mount package.
✓ Total Stock: 30,336 pcs
$ Price Range: $0.22

74LVC1G02GM Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
30,000 pcs
On Request
30000 pcs On Request 1 On Request On Request 16+ On Request On Request
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
336 pcs
On Request
336 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

74LVC1G02GM Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Logic Type
Mounting Type
Number of Circuits
Number of Inputs
Operating Temperature
Output Current
Propagation Delay
Quiescent Current
SVHC Present
Tape & Reel
Voltage
View Similar Products (0)

74LVC1G02GM Description

Short technical summary and product information.

The Nexperia 74LVC1G02GM is a high-performance NOR logic gate IC designed for various digital applications. This component integrates a single NOR gate with two inputs, offering efficient logic operations.



Key electrical characteristics include a wide operating supply voltage range from 1.65V to 5.5V, ensuring flexibility in different system designs. It boasts a low quiescent current of 4 µA and provides an output current of 32mA. The input logic levels are defined with a low threshold between 0.7V and 0.8V, and a high threshold between 1.7V and 2V. With a maximum propagation delay of 4ns at 5V and 50pF, it supports fast switching speeds.



Packaged in a compact 6-XSON (SOT886) surface mount configuration, the 74LVC1G02GM is suitable for space-constrained applications. The operating temperature range is -40°C to 125°C, making it robust for demanding environments. This IC is ideal for use in digital logic circuits requiring reliable NOR gate functionality.

74LVC1G02GM Quick Information

Product Type: Logic Gate IC
Series: 74LVC
Canonical Name: Nexperia 74LVC1G02GM NOR Gate IC, 1 Channel, 2-Input, 6-XSON
Subcategory: NOR Gate

74LVC1G02GM Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

74LVC1G02GM Estimated Pricing

Qty Low High
1+ $0.22 $0.22

Estimated market price range - modelled values for guidance only, not live distributor offers.

74LVC1G02GM Features

  • Single channel, 2-input NOR gate IC.
  • Wide supply voltage from 1.65V to 5.5V.
  • Fast propagation delay of 4ns.
  • Compact 6-XSON surface mount package.
  • Operates from -40°C to 125°C.

74LVC1G02GM Applications

  • Digital logic circuit implementation.
  • Signal routing and control.
  • Embedded system design.
  • Low power applications.

74LVC1G02GM FAQs

7 frequently asked questions generated from this part’s specifications.
What is the supply voltage range of the 74LVC1G02GM?

The supply voltage range is 1.65V to 5.5V.

What package does the 74LVC1G02GM come in?

It comes in a 6-XSON SOT886 surface-mount package.

What is the operating temperature range?

The operating temperature range is -40°C to 125°C.

What is the propagation delay of the 74LVC1G02GM?

The maximum propagation delay is 4ns at 5V with 50pF load.

What is the output current capability?

The output can source or sink 32mA.

What is the quiescent current?

The quiescent current is 4µA maximum.

What logic type is the 74LVC1G02GM?

It is a NOR gate with one circuit and two inputs.
