| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,300 pcs
|
3300 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Function | |
| Logic Type | |
| Mounting Type | |
| Number of Elements | |
| Operating Temperature | |
| Output Type | |
| SVHC Present | |
| Voltage |
The Nexperia USA Inc. 74LV165PW is an integrated circuit belonging to the logic family, specifically a shift register. This component is designed for applications requiring parallel or serial data input to serial output conversion.
Key electrical characteristics include an operating voltage range from 1V to 5.5V, making it suitable for a variety of low-power designs. The device operates within a temperature range of -40°C to 125°C, ensuring reliability in diverse environmental conditions.

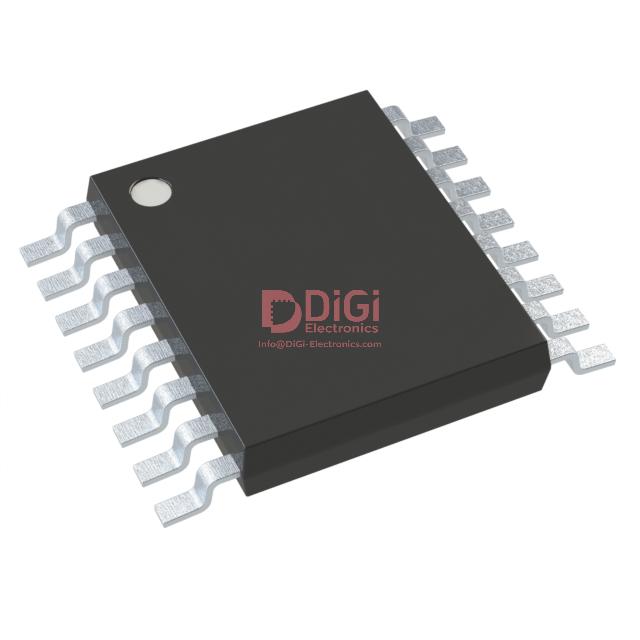

Mechanically, the 74LV165PW is housed in a 16-TSSOP package, measuring 0.173 inches (4.40mm) in width. It is designed for surface mounting, facilitating integration into compact electronic assemblies. The output type is complementary, and it features one element with 8 bits per element.
This shift register is part of the 74LV series, known for its low voltage operation. It is suitable for applications where efficient data handling and low power consumption are critical.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.64 | $0.64 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 1V to 5.5V.
The operating temperature range is -40°C to 125°C.
The 74LV165PW is available in a 16-TSSOP package.
The RoHS status is RoHS3 Compliant.
