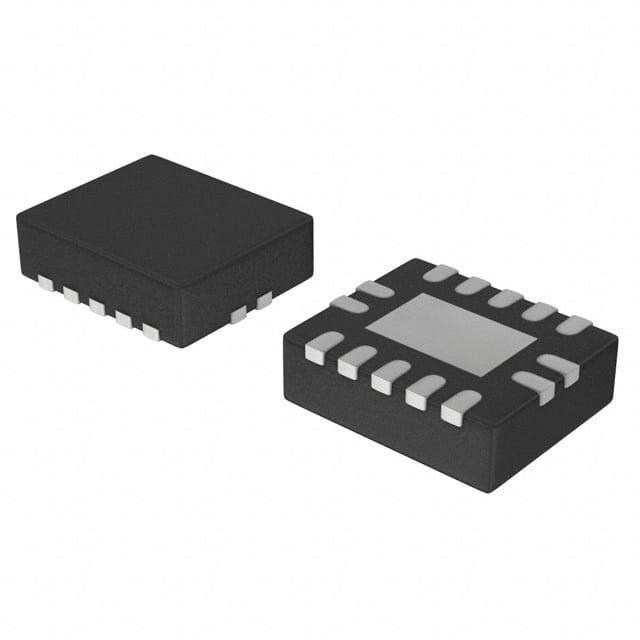

The 74LV164BQ,115 from Nexperia is an 8-bit serial-in, parallel-out shift register designed for versatile data handling. It features two serial data inputs (DSA and DSB) and eight parallel outputs (Q0 to Q7). Data is entered serially and shifted on the low-to-high transition of the clock input (CP).
This device supports a wide supply voltage range from 1.0 V to 5.5 V, making it suitable for various low-voltage applications. It operates within an extended temperature range of -40 °C to +125 °C. The shift register includes an asynchronous master reset input (MR) that clears the register and forces all outputs low, independent of other inputs.
Inputs are protected with clamp diodes, allowing the use of current-limiting resistors for interfacing with voltages exceeding VCC. The 74LV164BQ,115 is available in a 14-DHVQFN package, designed for surface mounting.
Key electrical characteristics include a typical output ground bounce (VOLP) of less than 0.8 V and a typical output VOH undershoot (VOHV) of greater than 2 V at 3.3 V supply and 25 °C ambient temperature. It complies with several JEDEC standards, including JESD8-7, JESD8-5, JESD8C, and JESD36.
| Qty | Low | High |
|---|---|---|
| 1+ | $44.95 | $44.95 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
1V to 5.5V.
-40°C to +125°C.
14-DHVQFN exposed pad (2.5x3mm).
Shift register.
Serial to parallel conversion.
HBM >2000V, CDM >1000V.
Push-pull.
