| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
400 pcs
|
400 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Industrial Grade | |
| Lead Spacing | |
| Lead Style | |
| Logic Type | |
| Mounting Type | |
| Number of Elements | |
| Operating Temperature | |
| Operating Voltage | |
| Output Type | |
| SVHC Present | |
| Storage Temperature |
The 74HC240DB is an octal buffer/line driver manufactured by NXP USA Inc. This component is designed for logic applications and features a 3-state output type. It operates within a supply voltage range of 2V to 6V and can function in extreme temperatures from -40°C to 125°C.

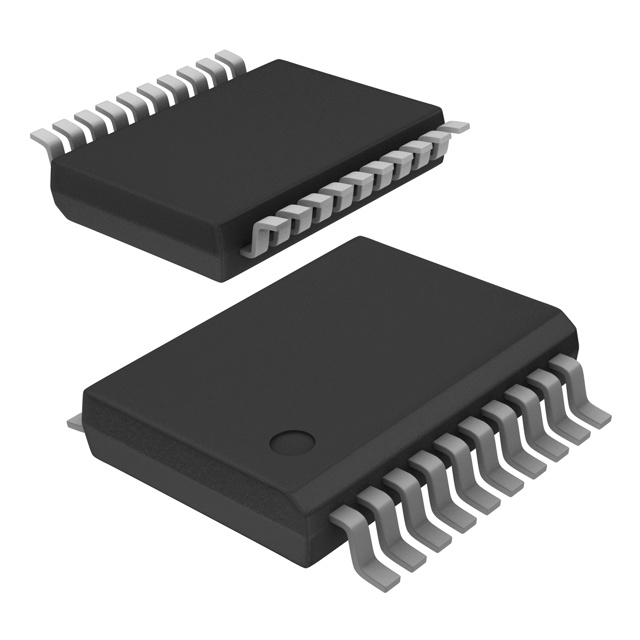

The device is housed in a 20-SSOP package and is suitable for surface mounting. Each buffer element contains 4 bits, and there are 2 elements in total. The output current capability is 7.8mA for both high and low states.
This buffer/line driver is part of the 74HC series, known for its high noise immunity and speed. Its robust operating temperature range makes it suitable for various industrial and commercial applications where reliability is crucial.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.20 | $1.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 2V to 6V.
It is available in a 20-SSOP surface mount package.
The operating temperature range is -40°C to 125°C.
The output type is 3-State.
Each element has 4 bits.
The logic type is Buffer, Inverting.
