74AXP1T57GXX The Nexperia USA Inc. 74AXP1T57GXX is a configurable multiple function logic gate. It operates within a voltage range of 0.7V to 5.5V and features a surface mount package.
Mfr Part #:

74AXP1T57GXX

Available from 1 distributors
Mfr Name: Nexperia USA Inc.
Nexperia USA Inc.
The Nexperia USA Inc. 74AXP1T57GXX is a configurable multiple function logic gate. It operates within a voltage range of 0.7V to 5.5V and features a surface mount package.
✓ Total Stock: 10,000 pcs
$ Price Range: $0.25

74AXP1T57GXX Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
10,000 pcs
On Request
10000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

74AXP1T57GXX Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Logic Type
Mounting Type
Number of Circuits
Number of Inputs
Operating Temperature
Output Type
Schmitt Trigger Input
Supplier Device Package
Voltage
View Similar Products (0)

74AXP1T57GXX Description

Short technical summary and product information.

The 74AXP1T57GXX from Nexperia USA Inc. is a versatile logic gate designed for configurable multiple functions. It supports a wide operating voltage range from 0.7V to 2.75V and 1.2V to 5.5V, making it suitable for various applications.

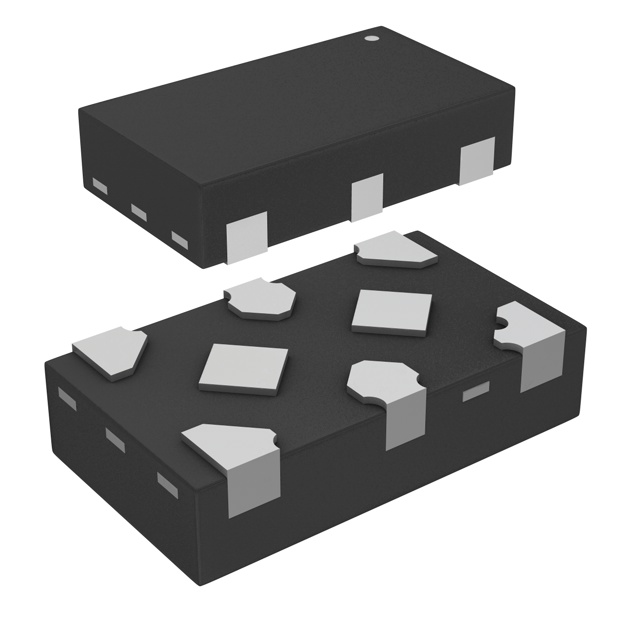

This device features a surface mountable 8-XFDFN Exposed Pad package, specifically the 8-X2SON (1.35x0.8) supplier package. It has 3 inputs and a single-ended output type, with a current capability of 12mA for both high and low outputs. The operating temperature range is from -40°C to 85°C.



With its configurable logic type and Schmitt trigger inputs, the 74AXP1T57GXX offers flexibility in circuit design. It is packaged in Tape & Reel for efficient automated assembly.

74AXP1T57GXX Quick Information

Product Type: Configurable Logic Gate
Series: 74AXP
Canonical Name: 74AXP1T57GXX Configurable Logic Gate
Subcategory: Multi-Function, Configurable

74AXP1T57GXX Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

74AXP1T57GXX Estimated Pricing

Qty Low High
1+ $0.25 $0.25

Estimated market price range - modelled values for guidance only, not live distributor offers.

74AXP1T57GXX Features

  • Configurable multiple function logic type.
  • Wide operating voltage from 0.7V to 5.5V.
  • Surface mountable 8-XFDFN Exposed Pad package.
  • Operates from -40°C to 85°C.
  • Features Schmitt trigger inputs for signal conditioning.

74AXP1T57GXX Applications

  • Battery-powered portable electronic devices.
  • Multi-voltage level translation logic gates.
  • General purpose configurable logic functions.
  • Space-constrained PCB designs.

74AXP1T57GXX FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the 74AXP1T57GXX?

The device operates from 0.7V to 2.75V and from 1.2V to 5.5V.

What is the operating temperature range?

The operating temperature range is -40°C to 85°C.

What package is the 74AXP1T57GXX available in?

It is offered in an 8-X2SON (1.35x0.8) surface mount package with an exposed pad.

Does the 74AXP1T57GXX have a Schmitt trigger input?

Yes, it features a Schmitt trigger input.

What is the output drive capability?

The output can source or sink 12mA.
