| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10,000 pcs
|
10000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Failure Rate | |
| Grade | |
| Lead Style | |
| Logic Type | |
| Mounting Type | |
| Number of Circuits | |
| Number of Inputs | |
| Operating Temperature | |
| Propagation Delay | |
| Quiescent Current | |
| Supplier Device Package |

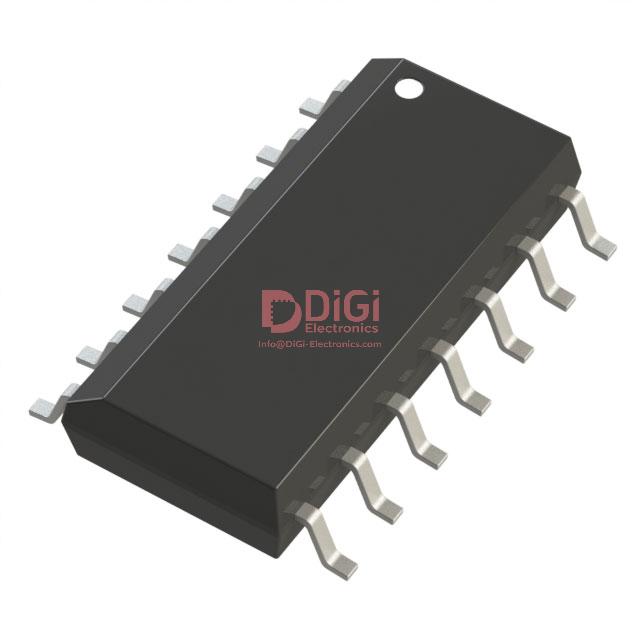

This Nexperia 74AHCT04D-Q100J is an integrated circuit featuring 6 inverter circuits, each with a single input. Designed for logic operations, it operates within a supply voltage range of 4.5V to 5.5V.
The device has a maximum quiescent current of 2 µA and can source or sink up to 8mA of output current. The input logic levels are set at a maximum of 0.8V for low and 2V for high. Propagation delay is rated at a maximum of 7.7ns at 5V with a 50pF load capacitance.
With an operating temperature range of -40°C to 125°C, this component is qualified for automotive applications under the AEC-Q100 standard. It is supplied in a 14-SOIC surface mount package, delivered on tape and reel.
Key specifications include 6 circuits, 1 input per circuit, and an inverter logic type. The 74AHCT series designation indicates its family and technology.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.22 | $0.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage range is 4.5V to 5.5V.
The operating temperature range is -40°C to 125°C.
It is available in a 14-SOIC package (0.154" width, 3.90mm) with a supplier device package of 14-SO.
The input logic low level is 0.8V, and the input logic high level is 2V.
The maximum propagation delay is 7.7ns at 5V supply and 50pF load.
The output current is 8mA for both high and low states.
Yes, it is AEC-Q100 qualified.
