74AUP2G08GXX The Nexperia 74AUP2G08GXX is a dual 2-input AND gate with a wide operating voltage range and Surface Mount packaging.
Mfr Part #:

74AUP2G08GXX

Available from 1 distributors
Mfr Name: Nexperia USA Inc.
Nexperia USA Inc.
The Nexperia 74AUP2G08GXX is a dual 2-input AND gate with a wide operating voltage range and Surface Mount packaging.
✓ Total Stock: 10,000 pcs
$ Price Range: $0.22

74AUP2G08GXX Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
10,000 pcs
On Request
10000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

74AUP2G08GXX Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Input Logic Level
Logic Type
Max Propagation Delay @ V, Max CL
Mounting Type
Number of Circuits
Number of Inputs
Operating Temperature
Supplier Device Package
Voltage
View Similar Products (0)

74AUP2G08GXX Description

Short technical summary and product information.

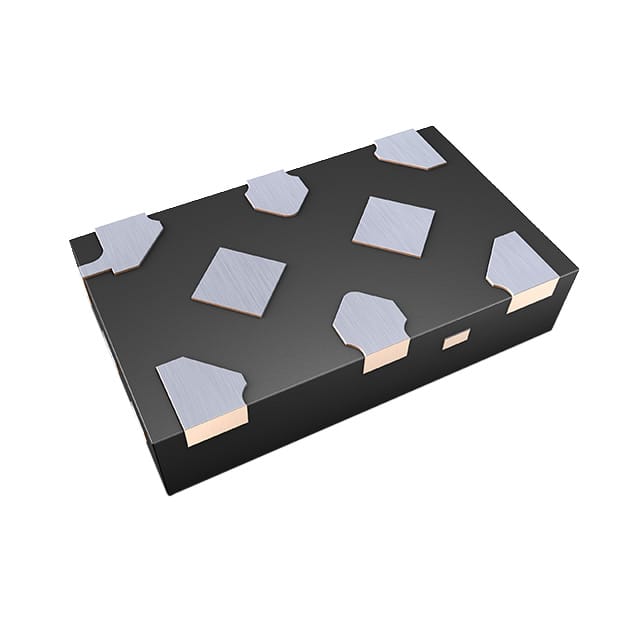

This Nexperia 74AUP2G08GXX is a dual 2-input AND gate designed for digital logic applications. It operates across a voltage range of 0.8V to 3.6V, with input logic levels between 1.6V and 2V. The device offers a maximum propagation delay of 6.2ns at 3.3V and 30pF. It is supplied in a compact 8-X2SON package with Surface Mount mounting type.



Key electrical characteristics include a current draw of 4mA and an operating temperature range of -40°C to 125°C. The 8-X2SON package, also referred to as 8-XFDFN Exposed Pad, is suitable for space-constrained designs. This component is part of the Gates and Inverters category, specifically an AND Gate.



Compliance information indicates RoHS3 compliance, MSL 1 Unlimited, and REACH Unaffected status, though these are noted with low confidence due to unverified data.

74AUP2G08GXX Quick Information

Product Type: Logic Gate
Series: 74AUP
Canonical Name: Nexperia 74AUP2G08GXX Dual 2-Input AND Gate
Subcategory: AND Gate

74AUP2G08GXX Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

74AUP2G08GXX Estimated Pricing

Qty Low High
1+ $0.22 $0.22

Estimated market price range - modelled values for guidance only, not live distributor offers.

74AUP2G08GXX Features

  • Dual 2-input AND gate logic.
  • Wide operating voltage from 0.8V to 3.6V.
  • Fast propagation delay of 6.2ns.
  • Compact 8-X2SON surface mount package.
  • Operates from -40°C to 125°C.

74AUP2G08GXX Applications

  • Digital logic circuit implementation.
  • Low-voltage system designs.
  • Space-constrained electronic products.
  • General purpose logic functions.

74AUP2G08GXX FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the 74AUP2G08GXX?

The operating voltage range is 0.8V to 3.6V.

What is the package type for the 74AUP2G08GXX?

The package is 8-X2SON (1.35x0.8mm) with surface mount mounting.

What is the operating temperature range of the 74AUP2G08GXX?

The operating temperature range is -40°C to 125°C.

What is the propagation delay of the 74AUP2G08GXX?

The maximum propagation delay is 6.2ns at 3.3V and 30pF load.

How many inputs does each gate have?

Each gate has two inputs, and there are two circuits per device.
