74AUP1G07GX4Z The Nexperia 74AUP1G07GX4Z is a single buffer IC with an open-drain output. It operates across a wide supply voltage range and features low power consumption.
Mfr Part #:

74AUP1G07GX4Z

Available from 1 distributors
Mfr Name: Nexperia USA Inc.
Nexperia USA Inc.
The Nexperia 74AUP1G07GX4Z is a single buffer IC with an open-drain output. It operates across a wide supply voltage range and features low power consumption.
✓ Total Stock: 10,000 pcs
$ Price Range: $1.20

74AUP1G07GX4Z Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
10,000 pcs
On Request
10000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

74AUP1G07GX4Z Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Latch-up Performance
Logic Type
Mounting Type
Number of Bits per Element
Number of Elements
Operating Temperature
Output Type
Supplier Device Package
Supplier Package
Voltage
View Similar Products (0)

74AUP1G07GX4Z Description

Short technical summary and product information.

The 74AUP1G07GX4Z from Nexperia is a single buffer integrated circuit featuring an open-drain output. This device is designed for low-power applications, operating across a wide supply voltage range from 0.8 V to 3.6 V. Its Schmitt-trigger inputs provide tolerance to slower input rise and fall times, enhancing noise immunity.



Key electrical characteristics include a low static power consumption with a maximum ICC of 0.9 μA. The output can source up to 4 mA. The device is specified for operation in temperature ranges from -40 °C to +125 °C.

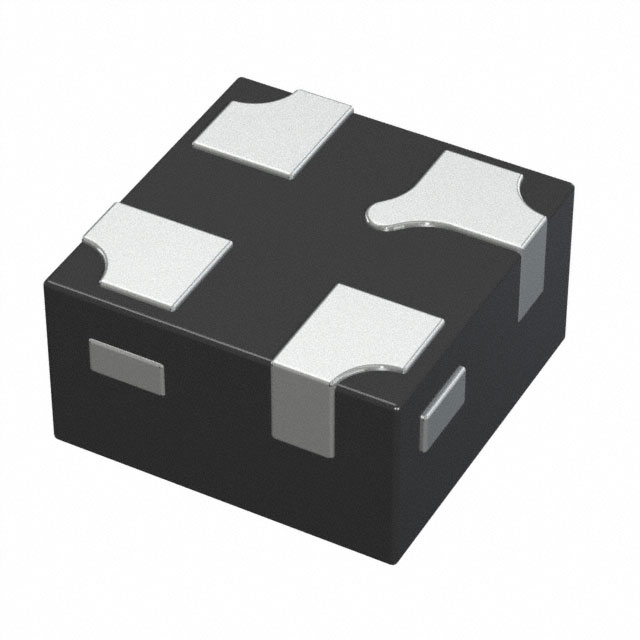

This buffer is available in a compact 4-X2SON surface-mount package, measuring 0.6 x 0.6 mm with a height of 0.32 mm. The open-drain output configuration allows for flexible interfacing in various digital logic systems. The IOFF circuitry supports partial power-down mode operation.

74AUP1G07GX4Z Quick Information

Product Type: Buffer
Canonical Name: 74AUP1G07 Single Buffer with Open-Drain Output
Subcategory: Buffer

74AUP1G07GX4Z Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

74AUP1G07GX4Z Estimated Pricing

Qty Low High
1+ $1.20 $1.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

74AUP1G07GX4Z Features

  • Single buffer with open-drain output.
  • Wide supply voltage range: 0.8 V to 3.6 V.
  • Low static power consumption: 0.9 μA maximum.
  • Schmitt-trigger inputs for slow rise/fall times.
  • Compact 4-X2SON surface-mount package.

74AUP1G07GX4Z Applications

  • Digital logic interfacing.
  • Low-power system designs.
  • Signal buffering applications.
  • Power-down mode integration.

74AUP1G07GX4Z FAQs

7 frequently asked questions generated from this part’s specifications.
What is the supply voltage range of the 74AUP1G07GX4Z?

The supply voltage range is 0.8 V to 3.6 V.

What package is the 74AUP1G07GX4Z available in?

It is available in a 4-X2SON surface-mount package (X2SON4) with body dimensions 0.6 mm × 0.6 mm × 0.32 mm.

What is the operating temperature range of the 74AUP1G07GX4Z?

The operating temperature range is -40°C to +125°C.

What is the output type of the 74AUP1G07GX4Z?

The output type is open drain.

What output current can the 74AUP1G07GX4Z provide?

The specified output current is 4 mA.

What ESD protection does the 74AUP1G07GX4Z provide?

The device exceeds 5000 V HBM and 1000 V CDM ESD protection.

What is the static power consumption of the 74AUP1G07GX4Z?

Maximum static power consumption is 0.9 μA.
