747238-4 D-Sub plug connector with 25 positions, through hole right angle mounting, and solder termination. Features gold plated contacts and steel shell with tin plating.
Mfr Part #:

747238-4

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
D-Sub plug connector with 25 positions, through hole right angle mounting, and solder termination. Features gold plated contacts and steel shell with tin plating.
✓ Total Stock: 5 pcs
$ Price Range: $7.09 - $9.66

747238-4 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
5 pcs
On Request
5 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

747238-4 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Backset Spacing
Connector Style
Connector Type
Contact Finish
Contact Type
Current Rating (Amps)
Features
Flange Feature
Material Flammability Rating
Mounting Type
Number of Positions
Number of Rows
Shell Material, Finish
Shell Size, Connector Layout
Termination
Termination Style
View Similar Products (0)

747238-4 Description

Short technical summary and product information.

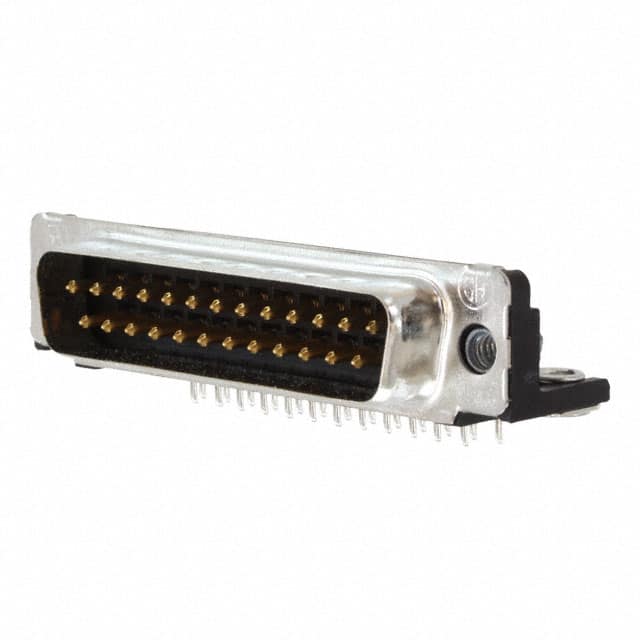

This D-Sub connector plug from TE Connectivity features 25 positions arranged in 2 rows, with male pins and a right-angle through-hole mounting style. It uses solder termination for secure connections.



The connector has a DB-3 (DB, B) shell size with a steel, tin-plated shell and a housing/shell flange with 4-40 threads. It includes a ground strap and grounding indents for enhanced EMI performance. The backset spacing is 0.318 inches (8.08mm).



Electrical rating is 6A per contact. The insulator material has a UL94 V-0 flammability rating. Contacts are gold-plated for reliable signal transmission. This connector is suitable for various data and signal applications requiring a robust D-Sub interface.

747238-4 Quick Information

Product Type: D-Sub Connector Plug
Canonical Name: D-Sub Connector Plug, 25 Positions, Through Hole, Right Angle, Solder
Subcategory: D-Sub Connector Assemblies

747238-4 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

747238-4 Estimated Pricing

Qty Low High
1+ $9.66 $9.66
10+ $8.73 $8.73
25+ $8.22 $8.22
50+ $7.92 $7.92
100+ $7.68 $7.68
260+ $7.09 $7.09

Estimated market price range - modelled values for guidance only, not live distributor offers.

747238-4 Features

  • 25-position D-Sub plug connector.
  • Right-angle through-hole mounting.
  • Gold-plated contacts for reliability.
  • Steel shell with tin plating.
  • Rated for 6A per contact.

747238-4 Applications

  • Used in computer I/O interfaces.
  • Suitable for data communication equipment.
  • Ideal for industrial control systems.
  • Common in test and measurement devices.

747238-4 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

25 positions.

What is the current rating?

6A per contact.

What is the mounting type?

Through Hole, Right Angle.

What is the contact finish?

Gold.

What is the shell material?

Steel, Tin Plated.

What is the flammability rating?

UL94 V-0.

What features does it have?

Ground Strap, Grounding Indents.

747238-4 Alternate Parts

Same form/fit/function or matching attribute configuration across different manufacturers.
View All Alternate Parts
5747238-4
5747238-4
TE Connectivity
D-Sub plug connector with 25 positions, male pins, through hole right angle mounting, solder termination. Rated for 6A current with gold-plated contacts.
