| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
16 pcs
|
16 pcs | On Request | 1 | On Request | On Request | NO DC | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

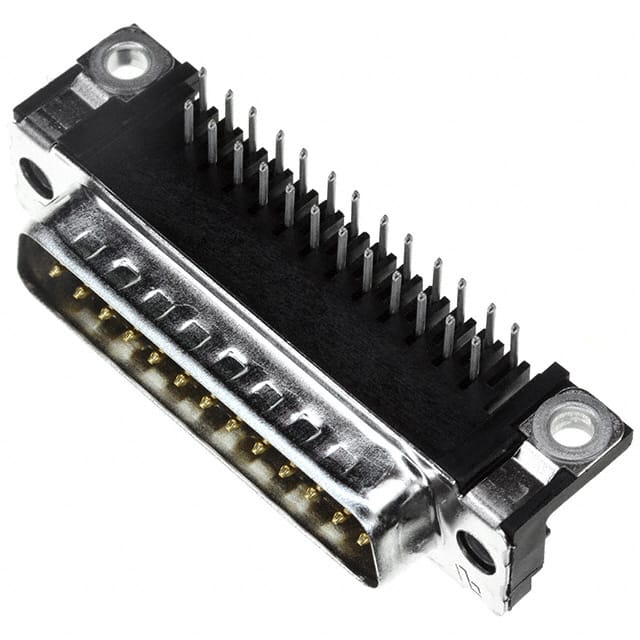

The TE Connectivity 5747238-4 is a D-Sub connector plug with 25 male pin positions arranged in 2 rows. It features a steel shell with tin plating, shell size 3 (DB, B), and a flange feature with 4-40 threaded inserts. The connector is designed for through hole right angle mounting with solder termination. Contacts are gold-plated for reliable signal integrity, and the housing material is rated UL94 V-0 for flammability. Additional features include a ground strap and grounding indents for EMI protection. The backset spacing is 0.318 inches (8.08 mm). This connector is suitable for a wide range of data and signal interconnection applications in industrial, computing, and communication equipment where ruggedness and reliability are required.
25 positions.
6 A.
Through hole, right angle.
Solder.
Gold.
Steel shell with tin plating.
UL94 V-0.
