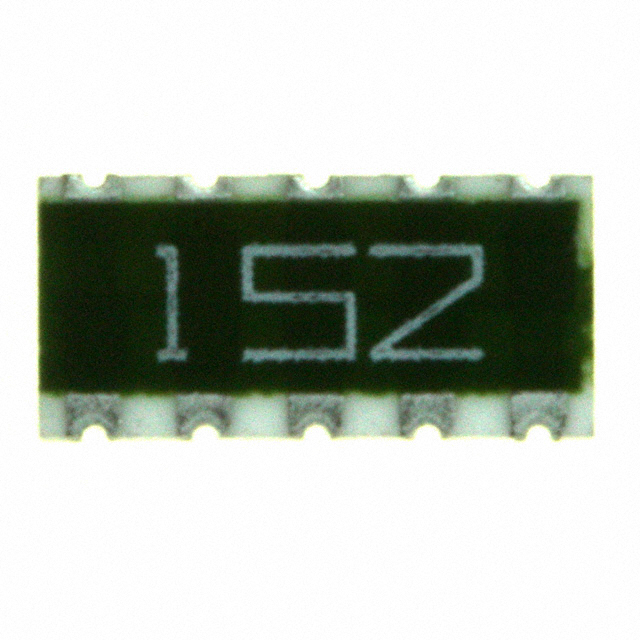

745C102332JP The CTS-Frequency Controls 745C102332JP is a resistor network array featuring 8 resistors with 3.3k Ohm resistance and a +/-5% tolerance. It is designed for surface mount applications.
Mfr Part #:

745C102332JP

Available from 1 distributors
Mfr Name: CTS-Frequency Controls
CTS-Frequency Controls
The CTS-Frequency Controls 745C102332JP is a resistor network array featuring 8 resistors with 3.3k Ohm resistance and a +/-5% tolerance. It is designed for surface mount applications.
✓ Total Stock: 4,000 pcs
$ Price Range: $0.05

745C102332JP Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
4,000 pcs
On Request
4000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

745C102332JP Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Circuit Type
Dimensions
Height (Max)
Mounting Type
Number of Resistors
Operating Temperature
Power Per Element
Resistance
SVHC Present
Tape & Reel
Temperature Coefficient
Tolerance
View Similar Products (0)

745C102332JP Description

Short technical summary and product information.

The CTS-Frequency Controls 745C102332JP is a resistor network array designed for electronic circuits requiring multiple resistors in a single package. It contains 8 individual resistors, each with a resistance value of 3.3k Ohms and a tolerance of +/-5%. The array operates within a temperature range of -55°C to 125°C.



This component is housed in a 2512 (6432 Metric) package with concave, long side terminals, suitable for surface mounting. The power dissipation per element is 63mW. Its circuit type is bussed, making it suitable for applications such as DDR SDRAM, DRAM, and MDDR memory systems.



The dimensions of the component are 6.40mm in length and 3.10mm in width, with a maximum height of 0.70mm. It features 10 pins in total. The temperature coefficient is +/-250ppm/°C, ensuring stable performance across varying temperatures.

745C102332JP Quick Information

Product Type: Resistor Network Array
Series: 745C
Canonical Name: CTS-Frequency Controls 745C102332JP Resistor Network Array
Subcategory: Resistor Networks, Arrays

745C102332JP Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

745C102332JP Estimated Pricing

Qty Low High
1+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

745C102332JP Features

  • 8 resistors with 3.3k Ohm resistance
  • +/-5% tolerance for precise values
  • Surface mount 2512 package
  • Operating temperature -55°C to 125°C
  • Suitable for DDR SDRAM applications

745C102332JP Applications

  • Used in DDR SDRAM systems
  • Suitable for DRAM applications
  • Applied in MDDR memory circuits

745C102332JP FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resistance value of the 745C102332JP?

3.3kΩ (3300 ohms).

What is the tolerance of this resistor network?

±5%.

How many resistors are in this network?

8 resistors.

What is the circuit configuration?

Bussed.

What is the power rating per element?

63mW.

What is the package size?

2512 (6432 Metric) surface mount package.

What is the operating temperature range?

-55°C to 125°C.
