| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
230 pcs
|
230 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Failure Rate | |
| Forward Voltage | |
| Height | |
| Lens Size | |
| Lens Style | |
| Lens Transparency | |
| Mounting Type | |
| Supplier Device Package |

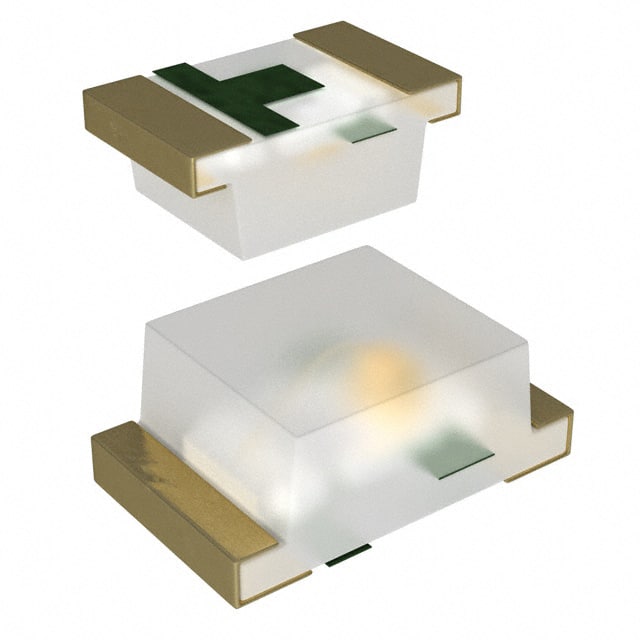

The 7012X1 is a discrete LED indicator manufactured by CML Innovative Technologies LTD, part of their BrightChips™ series. This component features a clear lens and emits a red light. It is designed for surface mount applications and comes in an 0805 (2012 Metric) package, with dimensions of 2.00mm in length and 1.25mm in width.
The electrical characteristics include a typical forward voltage of 1.7V and a peak wavelength of 660nm. The luminous intensity is rated at a typical 11.7mcd when tested at 20mA. The lens is clear and rectangular with a flat top, measuring 1.19mm x 1.25mm, and the component has a maximum height of 0.79mm.
This LED is suitable for various indication applications where a compact red light source is required. Its surface mount capability makes it ideal for automated assembly processes on printed circuit boards.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical forward voltage is 1.7V.
The package is 0805 (2012 Metric).
The typical luminous intensity is 11.7mcd at 20mA.
The peak wavelength is 660nm.
The lens is rectangular with a flat top.
The LED is red.
