| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,025 pcs
|
4025 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Assembly Length | |
| China RoHS | |
| Circuit Application | |
| Connector Type | |
| Contact Current Rating (Max) | |
| Contact Layout Arrangement | |
| Contact Type | |
| Contacts Preloaded | |
| Current Rating | |
| Current Rating (Amps) | |
| Durability Rating | |
| EU ELV | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Ingress Protection | |
| Insulation Material | |
| Lead Style | |
| Material Flammability Rating | |
| Mating Alignment | |
| Mating Retention | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Number of Signal Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Reverse Gender | |
| SVHC Present | |
| Sealable | |
| Shell Finish | |
| Shell Material | |
| Shell Plating Material | |
| Shell Type | |
| Shielding | |
| Standard Package Quantity | |
| Termination | |
| Termination Method | |
| Voltage Rating | |
| Wire size |

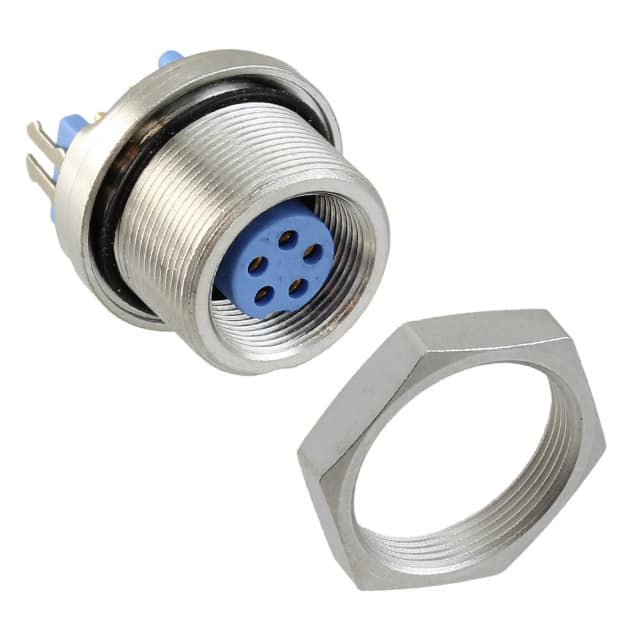

The TE Connectivity 7-1437719-2 is a 5-position circular receptacle connector from the Triad 01 series, designed for wire-to-board applications. It features a metal shell with nickel plating, providing shielding and durability. The connector is IP65 rated for dust and water resistance, making it suitable for harsh environments.
Electrical ratings include 3A per contact and 60 VAC operating voltage. The contacts are preloaded sockets, and the connector supports signal circuits with a wire size of 0.25 mm². The operating temperature range is -40 to 80°C.
Mounting is panel mount with a bulkhead feature, and termination is through-hole solder. The connector includes a board lock for secure attachment. It is keyed for proper orientation and has threaded fastening. The insulation material is PBT with UL94 V-2 flammability rating.
| Qty | Low | High |
|---|---|---|
| 1+ | $53.12 | $53.12 |
| 10+ | $45.15 | $45.15 |
| 25+ | $42.33 | $42.33 |
| 50+ | $40.31 | $40.31 |
| 100+ | $38.39 | $38.39 |
| 250+ | $35.99 | $35.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
5 positions (all signal, no power positions).
3 A per contact (maximum).
60 VAC.
Panel mount with through-hole solder termination and bulkhead feature.
IP65 (dust tight and water resistant).
-40 to 80°C (from datasheet).
Yes, the connector is shielded.
