| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Bending Radius (Minimum @ Multiple bends) | |
| Bending Radius (Minimum @ Single bend) | |
| Burning Behavior Class | |
| Cable Type | |
| Capacitance | |
| Characteristic Impedance (Nominal @ 3 MHz to 20 MHz) | |
| Characteristic Impedance (Nominal @ 38.4 kHz) | |
| Characteristic Impedance (Nominal @ 9.6 kHz) | |
| Characteristic Impedance Tolerance | |
| Conductor Material | |
| Data Wire Insulation Color | |
| Flame Rating | |
| Halogen Free | |
| Industrial Grade | |
| Inner Conductor Diameter | |
| Inner Sheath Diameter | |
| Inner Sheath Material | |
| Jacket (Insulation) Diameter | |
| Jacket (Insulation) Material | |
| Jacket Color | |
| Jacket Diameter Tolerance | |
| Loop Resistance | |
| Minimum Order Quantity | |
| Net Weight | |
| Number of Conductors | |
| Oil Resistance | |
| Operating Temperature | |
| Operating Temperature Range | |
| Packaging Dimensions | |
| Packaging Unit | |
| SVHC Present | |
| Shield Resistance | |
| Shield Type | |
| Silicon Free | |
| Storage Temperature | |
| Tensile Load | |
| UL/ETL Rating | |
| UV Resistance | |
| Voltage | |
| Weight per Length | |
| Wire Insulation Diameter | |
| Wire Insulation Material | |
| attenuation (Maximum @ 16 MHz) | |
| attenuation (Maximum @ 38.4 kHz) | |
| attenuation (Maximum @ 4 MHz) | |
| attenuation (Maximum @ 9.6 kHz) |

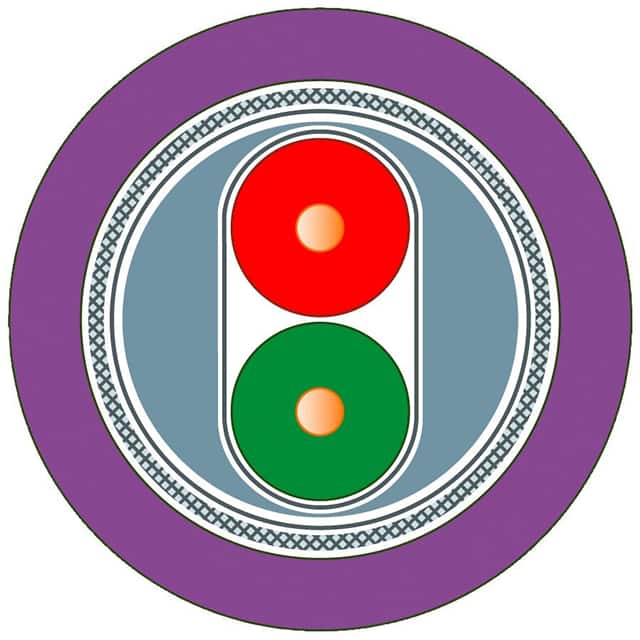

The Siemens 6XV18300EH10 is a PROFIBUS FC Standard Cable GP, a 2-conductor shielded bus cable designed for fast, permanent installation in industrial communication networks. It features a violet PVC outer jacket with an 8.00 mm diameter, foil and braid shielding, and a 100V voltage rating.
Electrical characteristics include a characteristic impedance of 150 Ω (3 MHz to 20 MHz), maximum loop resistance of 110 mΩ/m, and nominal capacitance of 28.5 pF/m at 1 kHz. The cable supports operating temperatures from -40°C to 75°C and meets flame ratings IEC 60332-3-24, UL 1685, and CSA FT4.
Mechanically, the cable has a minimum bending radius of 37.5 mm for single bends and 75 mm for multiple bends, with a maximum tensile load of 100 N. It is sold by the meter with a minimum order quantity of 20 meters.
| Qty | Low | High |
|---|---|---|
| 500+ | $4.07 | $4.07 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is 100 V RMS.
The operating temperature range is -40°C to 75°C.
Yes, it is RoHS3 compliant since 01.01.2006.
The characteristic impedance is 150 Ω nominal from 3 MHz to 20 MHz, with 10% tolerance.
The jacket is made of PVC and is violet in color.
It has foil and braid shielding.
