| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Barrier Type | |
| Bottom Termination | |
| Color | |
| Current Rating | |
| Current Rating (Amps) | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Circuits | |
| Number of Rows | |
| Number of Wire Entries | |
| Pitch | |
| Terminal Block Type | |
| Top Termination | |
| Voltage Rating | |
| Wire Gauge |

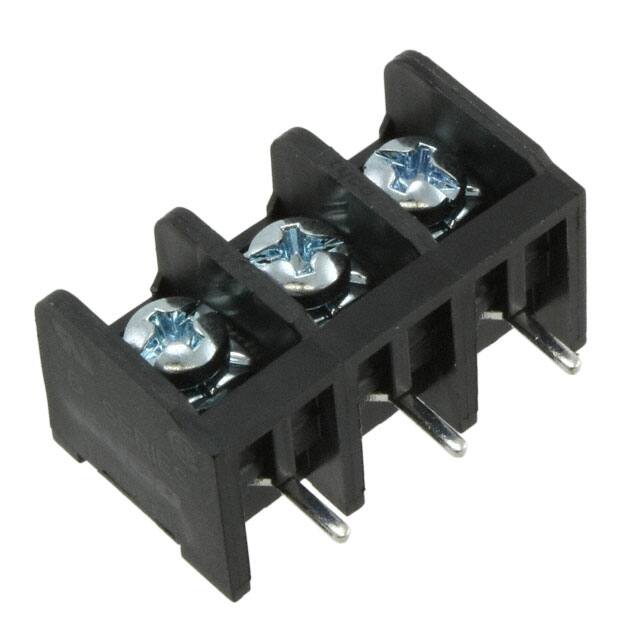

The TE Connectivity 6PCR-03-006 is a 3-circuit, 1-row barrier strip terminal block designed for reliable wire-to-board connections. It features a 9.53mm (0.375") pitch and accepts wire gauges from 12 AWG to 22 AWG. The electrical ratings are 25A current and 300V voltage, suitable for power distribution and control applications.
The terminal block uses screws with captive plate for top wire termination and PC pins for bottom board connection. The barrier type is 3-wall (tri) which provides increased isolation between circuits. The housing is molded in black thermoplastic with through-hole mounting for permanent attachment to a printed circuit board.
This component is RoHS3 compliant and has an MSL (Moisture Sensitivity Level) of 1 (unlimited). It is designed for industrial and commercial equipment requiring a compact, high-current interconnect solution. The 3-circuit variant is ideal for small junction points or power entry modules.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.89 | $3.89 |
| 10+ | $2.77 | $2.77 |
| 25+ | $2.42 | $2.42 |
| 50+ | $2.20 | $2.20 |
| 100+ | $2.02 | $2.02 |
| 250+ | $1.83 | $1.83 |
| 500+ | $1.72 | $1.72 |
| 1,000+ | $1.64 | $1.64 |
| 5,000+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
9.53mm (0.375 inches).
25 A.
300 V.
3 circuits in a single row.
12 to 22 AWG.
Through-hole with PC pin bottom termination and screw-captive plate top termination.
