| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,600 pcs
|
1600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
93 pcs
|
93 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Features | |
| Gender | |
| Mating Cycles | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| Shielding | |
| Specifications | |
| Termination | |
| Termination Style |

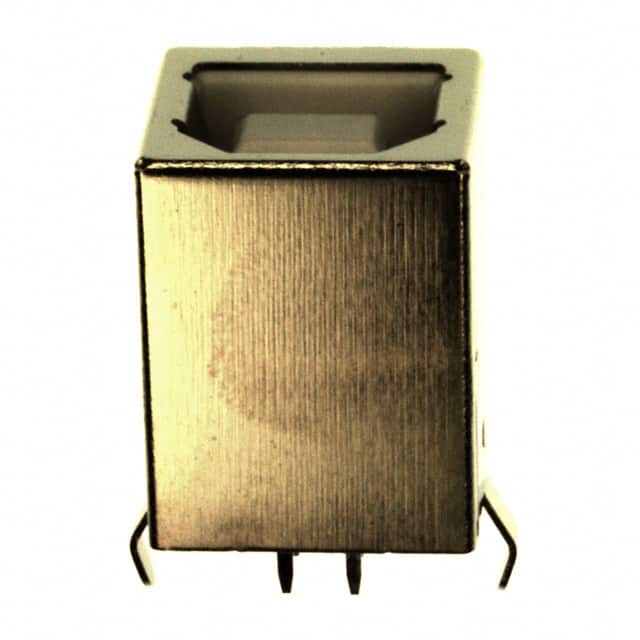

The Edac 690-004-660-023 is a USB-B (Type B) receptacle connector designed for USB 2.0 applications. It has 4 contacts and a single port, with a vertical through hole mounting style for permanent attachment to PCBs. The connector is unshielded and includes a board lock feature to ensure secure retention during soldering and use. It is rated for 1500 mating cycles and operates over a temperature range of -55°C to 85°C. This connector is suitable for use in data transfer and power delivery in USB 2.0 peripheral devices, industrial equipment, and consumer electronics where a vertical orientation is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.82 | $1.82 |
| 10+ | $1.55 | $1.55 |
| 25+ | $1.38 | $1.38 |
| 100+ | $1.32 | $1.32 |
| 250+ | $1.18 | $1.18 |
| 500+ | $1.13 | $1.13 |
| 1,000+ | $1.05 | $1.05 |
| 2,000+ | $0.98 | $0.98 |
| 4,000+ | $0.96 | $0.96 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4 contacts.
Through hole, vertical orientation.
USB 2.0.
1 port.
1500 mating cycles.
-55°C to 85°C.
