| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,977 pcs
|
8977 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Current Rating (Amps) | |
| Features | |
| Gender | |
| Lead Style | |
| Mating Cycles | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| Shielding | |
| Specifications | |
| Termination | |
| Termination Style | |
| Voltage |

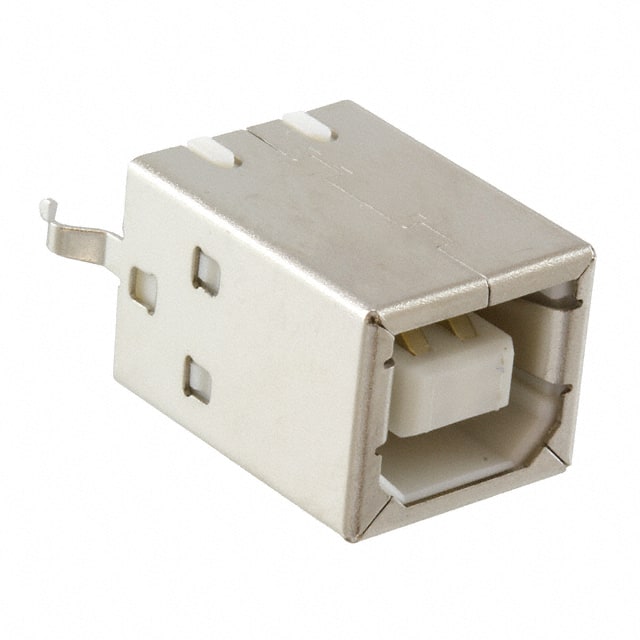

The Harwin M701-330442 is a USB Type B female receptacle connector designed for USB 2.0 applications. It features 4 contacts in a vertical through hole mounting configuration with solder termination. The connector includes a board lock for secure PCB retention.
Electrical ratings include 1.5A current and 30VAC/DC voltage. The interface supports an operating temperature range of -55°C to 85°C and is rated for 1500 mating cycles. This unshielded connector has a gold finish on the contact area and tin finish on the termination for reliability.
Mechanical features include vertical orientation and through hole terminations on the outer metal housing, providing additional PCB retention. Designed for general-purpose USB connectivity where a standard Type B connection is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.97 | $0.97 |
| 10+ | $0.83 | $0.83 |
| 25+ | $0.78 | $0.78 |
| 50+ | $0.74 | $0.74 |
| 100+ | $0.70 | $0.70 |
| 300+ | $0.65 | $0.65 |
| 500+ | $0.63 | $0.63 |
| 1,000+ | $0.60 | $0.60 |
| 2,500+ | $0.56 | $0.56 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4 contacts.
1.5A.
30VAC/DC.
Through hole, vertical orientation.
-55°C to 85°C.
No, it is unshielded.
1500 cycles.
