| Category | |
| Manufacturer Name | |
| Accessory Type | |
| Current Rating | |
| For Use With | |
| Mounting Type | |
| Width |

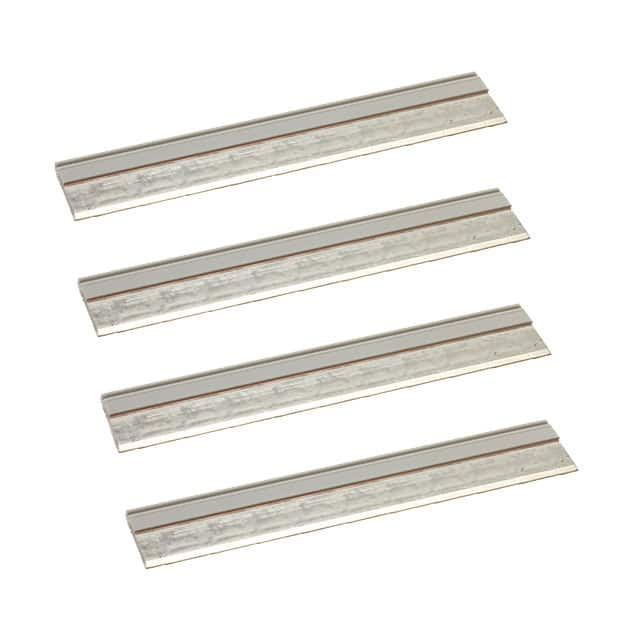

The Weidmüller 6720005475 is a bus bar accessory specifically designed for the ESX10-T electronic circuit protector series. This component is essential for organizing and distributing power within a circuit protection system, particularly for LINE+ and 0V connections.
It supports a wide range of current ratings, from 0.5 A up to 12 A, making it versatile for various applications. The bus bar is designed for easy rail mounting, simplifying installation and maintenance in control panels and industrial enclosures. Its construction ensures reliable connectivity for the ESX10-T modules, contributing to the overall integrity and selective disconnection capabilities of the protection system.
This accessory is crucial for building robust and efficient 24 VDC load systems, enabling selective protection against overloads and short circuits. The active current limitation feature of the associated ESX10-T devices, supported by this bus bar, allows for the safe connection of capacitive loads up to 20,000 µF.
0.5 A to 12 A.
Up to 20,000 µF.
1.1 x In.
12.5 mm.
Rail mount.
A busbar for line + and 0V in ESX10 systems.
