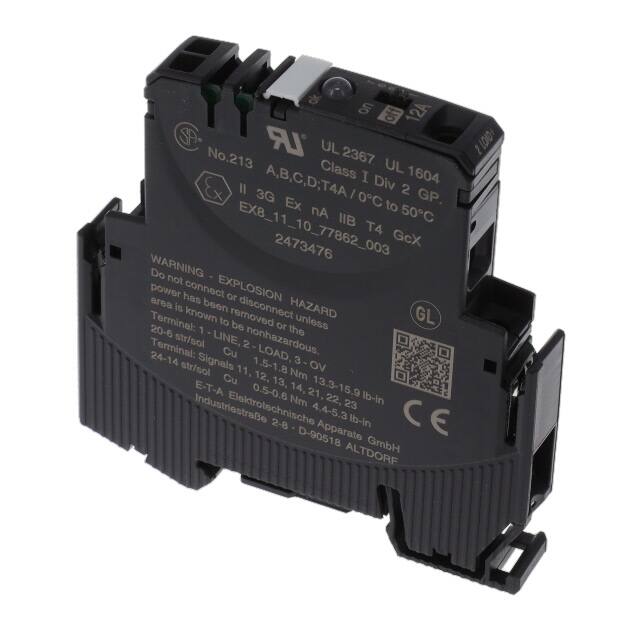

The Weidmüller 6720005392 is an electronic circuit protection device from the ESX10-T series. Designed for selective load protection in 24VDC systems, it provides reliable overload disconnection with electronic trip characteristics.
Key electrical specifications include a 12A current rating and a 24VDC operating voltage. The breaker type is thermal, and it features a slide switch actuator for manual ON/OFF control. It supports active current limitation, allowing for the safe connection of capacitive loads up to 20,000 uF. The device also offers a time to trip of 3 seconds.
Mounting is facilitated via a standard DIN rail. The ESX10-T series is designed for ease of wiring and clear status indication. Approvals include ATEX, CE, CSA, UL, and VDE, making it suitable for various industrial applications, including hazardous areas (Class 1, Div 2).
This circuit breaker ensures faster response to overload or short circuit conditions compared to standard power supplies, preventing complete system disconnection due to a single faulty load. It is suitable for applications requiring selective disconnection and active current limitation.
24 VDC.
12 A.
Thermal.
1 pole.
DIN rail.
3 seconds.
ATEX, CE, CSA C22.2 No 14, CSA C22.2 No 142, CSA C22.2 No 213, UL1604, UL508, UL2367, and VDE.
