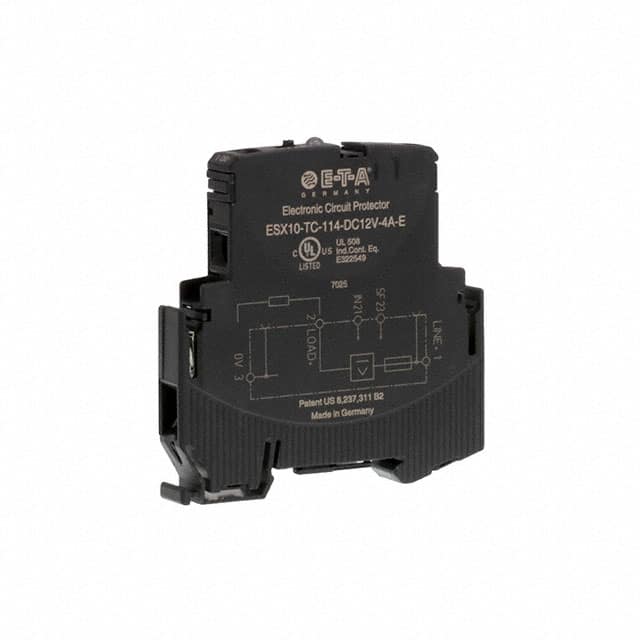

The Weidmüller 6720005354 is a solid state circuit breaker from the ESX 10-TC series, engineered for reliable 12VDC load system protection. This single-pole breaker offers selective load protection with electronic trip characteristics and active current limitation, making it suitable for capacitive loads up to 20,000 μF.
Key electrical specifications include a 4A current rating and a 12VDC operating voltage. The breaker is designed for easy installation on DIN rails and features a slide switch actuator. It is approved by ATEX, CE, UL1604, UL508, and UL2367, indicating its suitability for various industrial environments.
With a compact width of only 12.5 mm, the ESX 10-TC series saves valuable control cabinet space. It provides clear status indication and supports remote operation via control and reset signals. The breaker ensures reliable overload disconnection, even with long load lines or small cable cross-sections.
4A.
12VDC and 24V.
Solid state.
1 pole.
ATEX, CE, UL1604, UL508, UL2367.
DIN rail.
Up to 20,000 µF.
