| Category | |
| Manufacturer Name | |
| Accessory Type | |
| Current Rating | |
| For Use With | |
| Mounting Type | |
| Width |

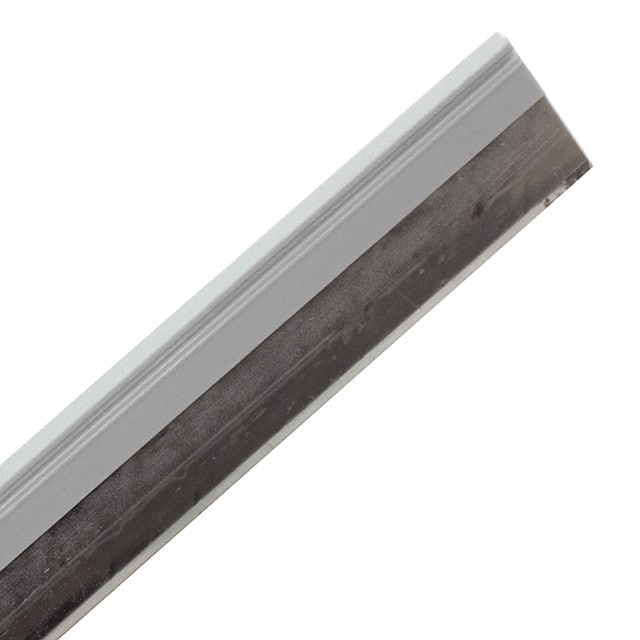

The Weidmüller 6720005315 is a bus bar accessory specifically designed for the ESX10-T electronic circuit protection devices. This component facilitates efficient power distribution and connection within a 24VDC load system.
Key electrical specifications include support for current ratings ranging from 0.5A to 12A. The bus bar is engineered to handle active current limitation, allowing for the safe connection of capacitive loads up to 20,000 µF. It also ensures reliable overload disconnection with a threshold of 1.1 times the nominal current.
Mechanically, the bus bar features a compact design with a width of 12.5mm per unit, making it suitable for space-constrained applications. It is designed for rail mounting, simplifying installation and integration into standard industrial control panels. The bus bar also supports features like remote operation and manual ON/OFF control via the ESX10-T device it connects to.
The current rating ranges from 0.5 A to 12 A.
Active current limitation is 1.3 to 1.8 times the rated current.
It can handle capacitive loads up to 20,000 µF.
It is designed for rail mounting.
The width per unit is 12.5 mm.
