66506-066LF
Amphenol ICC
10-position (2x2) 2.54mm pitch through-hole shrouded header with male pins, gold-plated phosphor bronze contacts, and UL94 V-0 insulation.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination |

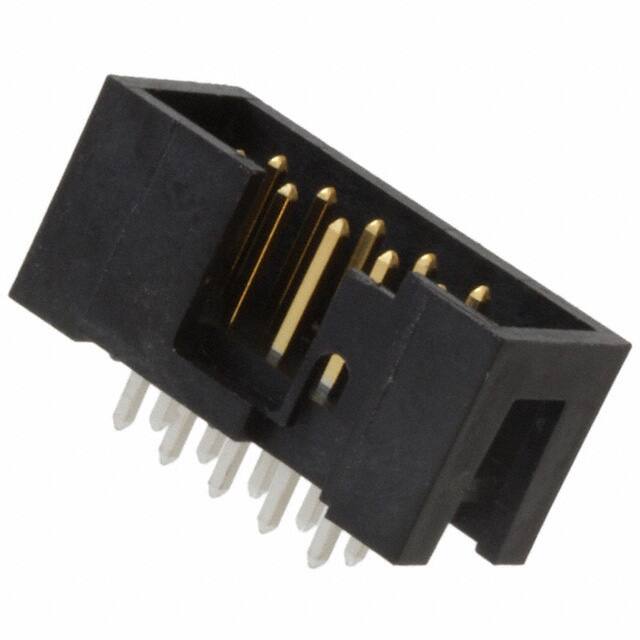

The Amphenol ICC 66506-001LF is a 10-position, 2-row shrouded header connector designed for board-to-cable/wire applications. It features a 2.54mm (0.100") pitch and row spacing, making it compatible with standard ribbon cable and IDC connectors.
The connector uses square male pins made of phosphor bronze with a gold or GXT™ contact finish of 30.0µin (0.76µm) for reliable electrical performance. The insulation is black glass-filled polyester with a UL94 V-0 flammability rating. The header is fully shrouded with 4 walls and includes a keying slot for polarization.
Mounting is through-hole with solder termination. The push-pull fastening type ensures secure mating. The insulation height is 9.27mm (0.365") and contact length is 5.84mm (0.230"). All 10 positions are loaded.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.57 | $1.57 |
| 10+ | $1.43 | $1.43 |
| 25+ | $1.39 | $1.39 |
| 100+ | $1.22 | $1.22 |
| 250+ | $1.21 | $1.21 |
| 500+ | $1.09 | $1.09 |
| 1,000+ | $1.03 | $1.03 |
| 2,000+ | $0.94 | $0.94 |
| 4,000+ | $0.91 | $0.91 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 positions in 2 rows.
2.54mm (0.100")
Through hole with solder termination.
Gold or Gold, GXT™ with 30.0µin (0.76µm) thickness.
Yes, it is a shrouded 4-wall header with a keying slot.
Black glass-filled polyester with UL94 V-0 flammability rating.
Phosphor bronze.
