| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
78 pcs
|
78 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination |

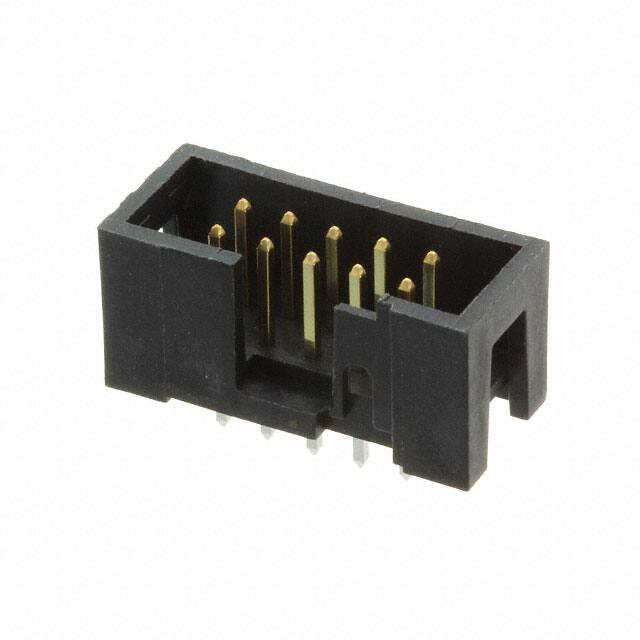

The 66506-066LF is a 10-position (2 rows) shrouded header from Amphenol ICC, designed for board-to-cable/wire applications. It features a 2.54mm pitch and through-hole mounting with solder termination, ensuring reliable PCB attachment.
Contacts are made of phosphor bronze with a gold or gold GXT™ finish of 30µin (0.76µm), providing excellent conductivity and corrosion resistance. The contact length is 5.84mm (0.230"). The insulation body is black glass-filled polyester with a UL94 V-0 flammability rating, offering high mechanical strength and flame retardance.
The header is fully shrouded with a 4-wall design and includes a keying slot for proper mating alignment. The push-pull fastening type allows easy insertion and extraction. With a row spacing of 2.54mm and a 9.27mm insulation height, this connector is suitable for compact PCB layouts.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.37 | $1.37 |
| 10+ | $1.18 | $1.18 |
| 50+ | $1.14 | $1.14 |
| 100+ | $1.05 | $1.05 |
| 250+ | $1.01 | $1.01 |
| 500+ | $0.94 | $0.94 |
| 1,000+ | $0.93 | $0.93 |
| 2,500+ | $0.91 | $0.91 |
| 5,000+ | $0.85 | $0.85 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 10 positions arranged in 2 rows. All positions are loaded.
The pitch is 2.54mm (0.100") with the same row spacing.
Through-hole mounting with solder termination.
Gold or Gold, GXT™ finish with a thickness of 30.0µin (0.76µm).
The insulation is black glass-filled polyester with a UL94 V-0 flammability rating.
Yes, it is fully shrouded with a 4-wall design and includes a keying slot.
Push-pull fastening type.
