| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
52 pcs
|
52 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Color | |
| Connector Type | |
| Contact Termination | |
| Contact Type | |
| Current Rating | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Industrial Grade | |
| Insulation Resistance | |
| Insulator Material | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Tape & Reel | |
| Termination Style | |
| Working Voltage |

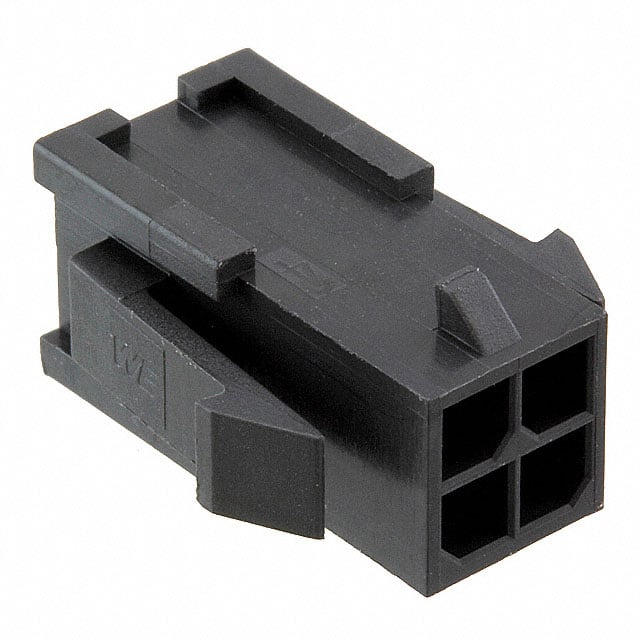

The Würth Elektronik 66200421822 is a 4 position, 2 row male pin plug housing designed for 3.00mm pitch rectangular connector systems. The housing is panel mount with a locking ramp fastening mechanism for secure mating. It accepts crimp termination contacts (male pins), allowing flexible wire-to-wire or wire-to-board connections.
Electrical ratings include a current rating of 5A and a working voltage of 250V AC. The insulator is made of Nylon 66 with a UL94 V-0 flammability rating, ensuring reliable performance in a variety of environments. The operating temperature range is -25°C to 105°C.
The housing is RoHS compliant and lead free. It is packaged in a bag. This connector housing is suitable for general electronic equipment applications where a compact, reliable interconnect solution is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.92 | $0.92 |
| 10+ | $0.91 | $0.91 |
| 50+ | $0.84 | $0.84 |
| 100+ | $0.73 | $0.73 |
| 500+ | $0.68 | $0.68 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 66200421822 has 4 positions arranged in 2 rows.
The pitch is 3.00mm (0.118") with a row spacing of 3.00mm.
The current rating is 5A.
The working voltage is 250V AC.
It is a panel mount connector housing.
The operating temperature range is -25°C to 105°C.
Yes, it is RoHS compliant and lead free.
