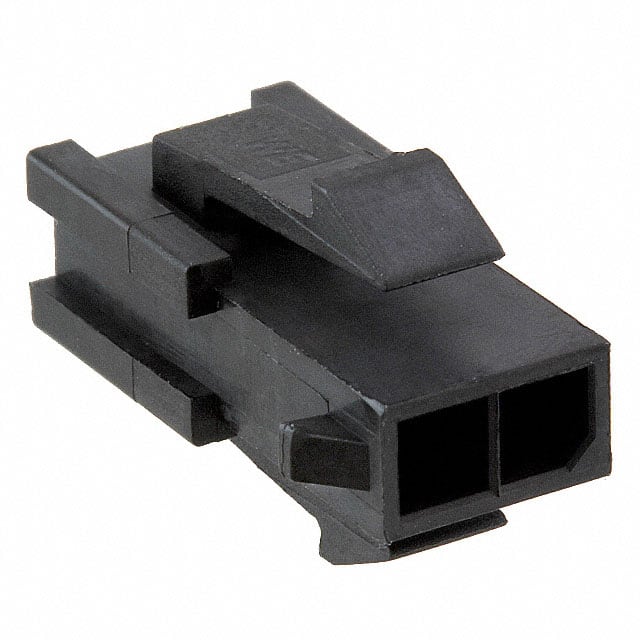

66200221822 Connector housing plug with 2 positions, 3.00mm pitch, dual row, crimp termination. Rated for 5A and 250V AC, with locking ramp fastening.
Mfr Part #:

66200221822

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
Connector housing plug with 2 positions, 3.00mm pitch, dual row, crimp termination. Rated for 5A and 250V AC, with locking ramp fastening.
✓ Total Stock: 252 pcs
$ Price Range: $0.60 - $0.81

66200221822 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
252 pcs
On Request
252 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

66200221822 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Connector Type
Contact Termination
Contact Type
Current Rating
Dielectric Withstanding Voltage
Fastening Type
Halogen Free
Industrial Grade
Insulator Material
Mounting Type
Number of Positions
Number of Rows
Operating Temperature
Pitch
Row Spacing
SVHC Present
Tape & Reel
Working Voltage
View Similar Products (0)

66200221822 Description

Short technical summary and product information.

The Würth Elektronik 66200221822 is a 2-position rectangular connector housing designed for use with male pin contacts. It features a 3.00mm pitch and dual row configuration, making it suitable for compact wire-to-board or wire-to-wire applications. The housing is made of black Nylon 66 with a UL94 V-0 flammability rating, ensuring good mechanical strength and fire resistance. It is rated for a current of 5A and a working voltage of 250V AC, with an insulator resistance of greater than 1000 MΩ and a dielectric withstanding voltage of 1500V AC. The operating temperature range is -25°C to 105°C. The connector uses a locking ramp fastening mechanism for secure mating and is panel mountable. Contacts are crimp terminated, allowing for field installation. The housing is RoHS compliant and lead-free.

66200221822 Quick Information

Product Type: Rectangular Connector Housing
Series: WR-MPC3
Canonical Name: Würth Elektronik 66200221822 3.00mm Dual Row Plug Housing, 2 Positions
Subcategory: Rectangular Connector Housing

66200221822 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

66200221822 Estimated Pricing

Qty Low High
1+ $0.81 $0.81
10+ $0.80 $0.80
50+ $0.74 $0.74
100+ $0.64 $0.64
500+ $0.60 $0.60

Estimated market price range - modelled values for guidance only, not live distributor offers.

66200221822 Features

  • Housing has 2 positions in dual row.
  • Pitch is 3.00mm for compact design.
  • Rated for 5A current and 250V AC.
  • Locking ramp provides secure connection.
  • Panel mountable with crimp termination.

66200221822 Applications

  • Ideal for wire-to-board connections.
  • Used in power supply assemblies.
  • Suitable for industrial control panels.
  • Good for consumer electronics wiring.

66200221822 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this connector housing have?

This housing has 2 positions.

What is the pitch of this connector?

The pitch is 3.00mm.

What is the current rating of this housing?

The current rating is 5A.

What is the working voltage rating?

The working voltage is 250V AC.

What mounting type does this connector use?

This connector is panel mount.

What is the operating temperature range?

The operating temperature range is -25°C to 105°C.

Is the housing RoHS compliant?

Yes, the datasheet states it is lead-free and RoHS compliant.
