| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
148 pcs
|
148 pcs | On Request | 1 | On Request | On Request | 19+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Termination | |
| Contact Type | |
| Current Rating | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Insulator Material | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Working Voltage |

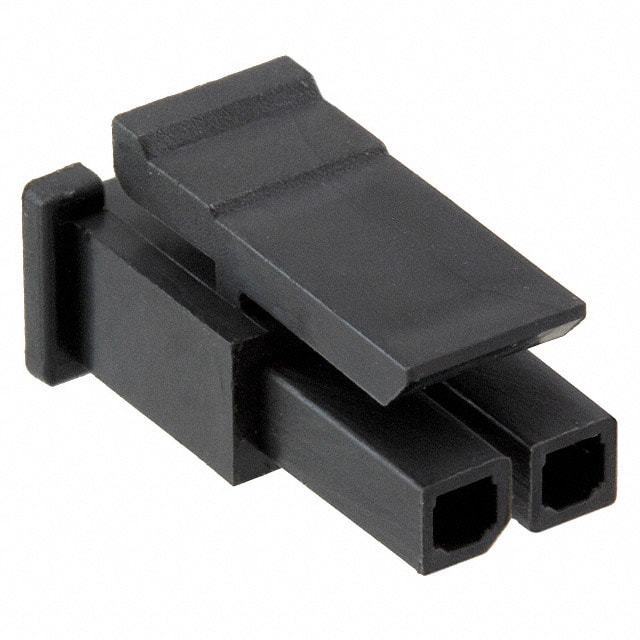

The Würth Elektronik 662002013322 is a 2-position, single row, female receptacle housing from the WR-MPC3 series of 3.00mm pitch connectors. It is designed for free hanging (in-line) mounting and uses crimp termination with female socket contacts (contacts sold separately). The housing is made of black Nylon 66 with a UL94 V-0 flammability rating, suitable for applications requiring high reliability and safety.
Electrically, this housing supports a current rating of 5A and a working voltage of 250V AC. It offers a dielectric withstanding voltage of 1500V AC and insulation resistance greater than 1000 MΩ. The operating temperature range is -25°C to 105°C. The fastening type is a latch holder, ensuring secure mating with corresponding male headers.
The component is RoHS compliant and bears UL standard certification E323964. It is packaged in bag format. Typical applications include general electronics equipment where a reliable, low-cost wire-to-wire or wire-to-board connection is needed.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.58 | $0.58 |
| 10+ | $0.57 | $0.57 |
| 50+ | $0.53 | $0.53 |
| 100+ | $0.46 | $0.46 |
| 500+ | $0.43 | $0.43 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 3.00mm.
It has 2 positions.
The current rating is 5A.
The working voltage is 250V AC.
Free hanging (in-line) mounting.
-25°C to 105°C.
Yes, RoHS compliant as per datasheet.
