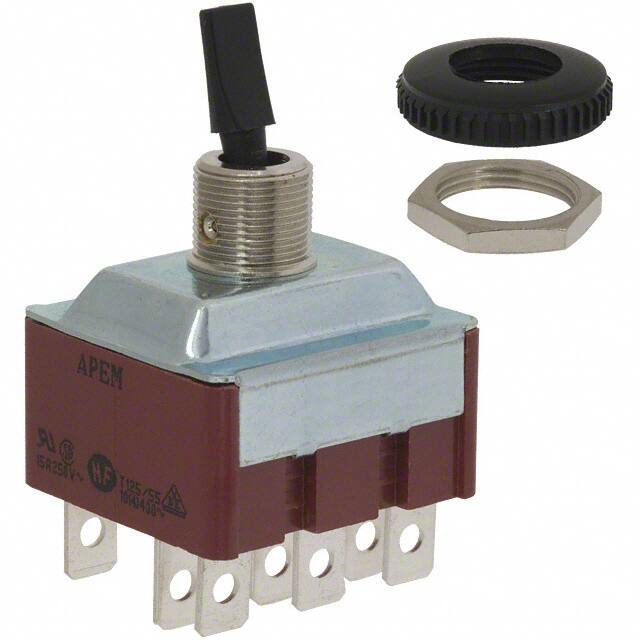

656NH/2 The APEM Inc. 656NH/2 is a 3PDT On-On toggle switch rated for 15A at 250V. It features a panel mount design with quick connect termination.
Mfr Part #:

656NH/2

Available from 1 distributors
Mfr Name: APEM Inc.
APEM Inc.
The APEM Inc. 656NH/2 is a 3PDT On-On toggle switch rated for 15A at 250V. It features a panel mount design with quick connect termination.
✓ Total Stock: 3 pcs
$ Price Range: $0.75

656NH/2 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
3 pcs
On Request
3 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

656NH/2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Length
Actuator Type
Bushing Thread
Circuit
Current Rating (Amps)
Illumination
Insulation Resistance
Mounting Type
Operating Temperature
Panel Cutout Dimensions
Switch Function
Tape & Reel
Termination Style
Voltage Rating
View Similar Products (0)

656NH/2 Description

Short technical summary and product information.

The APEM Inc. 656NH/2 is a robust toggle switch designed for high amperage applications. This 3PDT (Triple Pole Double Throw) switch features an On-On function, making it suitable for various control applications.



With a current rating of 15A at 250V, it can handle significant electrical loads. The switch is designed for panel mounting and utilizes quick connect termination style (0.250" or 6.3mm) for easy installation. Its operating temperature range is -20°C to 55°C, ensuring reliable performance in moderate environmental conditions.



The actuator is flatted and non-illuminated, with a length of 13.50mm. The bushing thread is M12 x 0.75, and the panel cutout is circular with a diameter of 12.20mm. The switch is built with a polyester case and silver/nickel alloy contacts.



This series is approved by UL, CSA, and NF-VDE (EN 61058-1), indicating compliance with international safety standards. The 600H-600NH series, to which this part belongs, is known for its high current/voltage ratings and robust mechanism.

656NH/2 Quick Information

Product Type: Toggle Switch
Series: 600H-600NH
Canonical Name: APEM Inc. 656NH/2 3PDT On-On Toggle Switch
Subcategory: Toggle Switch

656NH/2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

656NH/2 Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

656NH/2 Features

  • 3PDT On-On toggle switch configuration.
  • Rated for 15A at 250V AC.
  • Panel mount with quick connect termination.
  • Operates from -20°C to 55°C.
  • UL, CSA, and NF-VDE approved.

656NH/2 Applications

  • Suitable for high amperage switching.
  • Used in control panel applications.
  • Ideal for industrial equipment.
  • Reliable for power circuit control.

656NH/2 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the current and voltage rating for the APEM Inc. 656NH/2 toggle switch?

The APEM Inc. 656NH/2 toggle switch is rated for 15A at 250V.

What type of circuit does the APEM Inc. 656NH/2 toggle switch have?

The APEM Inc. 656NH/2 toggle switch has a 3PDT circuit.

What is the operating temperature range for this toggle switch?

The operating temperature range for this toggle switch is -20°C to 55°C.

How is the APEM Inc. 656NH/2 toggle switch mounted?

The APEM Inc. 656NH/2 toggle switch is designed for panel mounting.

What termination style does the APEM Inc. 656NH/2 toggle switch use?

The APEM Inc. 656NH/2 toggle switch uses a Quick Connect termination style of 0.250" (6.3mm).
