Mfr Part #:

656H/2

Mfr Name: APEM Inc.

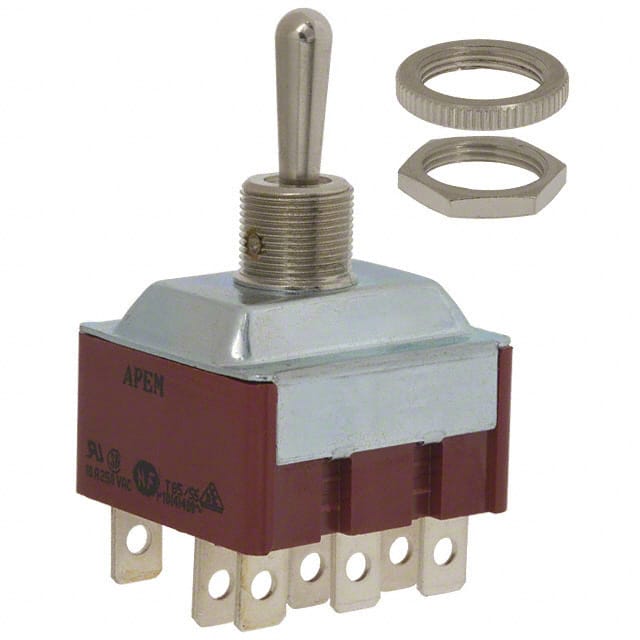

The APEM Inc. 656H/2 is a 3PDT toggle switch designed for panel mounting with quick connect terminals. It offers a robust 15A current rating at 250V AC.

✓ Total Stock: 14 pcs

$ Price Range: $0.75

656H/2 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Partservice ✓ Non-Authorised Inventory information	14 pcs On Request	14 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

656H/2 Description

Short technical summary and product information.

This APEM Inc. 656H/2 toggle switch is a 3PDT (Triple Pole, Double Throw) device suitable for various applications requiring reliable switching. It features a panel mount design with a standard round actuator and quick connect termination style for easy installation.

The switch is rated for a maximum of 15A at 250V AC, making it suitable for moderate to high current loads. Its operating temperature range is from -20°C to 55°C, ensuring performance in diverse environmental conditions. The bushing is threaded with M12 x 0.75 for secure mounting, and the panel cutout requires a circular diameter of 12.20mm.

Constructed with a polyester UL94-V0 case, brass nickel-plated actuator, and silver/nickel alloy contacts, this toggle switch is built for durability. The 600H-600NH series designation indicates its high amperage capabilities and robust mechanism. Agency approvals include UL, CSA, and NF-VDE (EN 61058-1), underscoring its compliance with international standards.

656H/2 Quick Information

Product Type: Toggle Switch

Series: 600H-600NH

Canonical Name: APEM Inc. 656H/2 Toggle Switch

Subcategory: Toggle Switch

656H/2 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

656H/2 Estimated Pricing

Qty	Low	High
1+	$0.75	$0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

656H/2 Features

3PDT circuit configuration for complex switching.
High current rating of 15A at 250V AC.
Panel mount design with quick connect terminals.
Durable construction with polyester and brass materials.
Wide operating temperature range of -20°C to 55°C.

656H/2 Applications

Suitable for industrial control panels.
Used in power distribution systems.
Applicable for equipment with multiple power modes.
Ideal for test and measurement equipment.

656H/2 FAQs

5 frequently asked questions generated from this part’s specifications.

What is the current and voltage rating of the APEM Inc. 656H/2 toggle switch?

The APEM Inc. 656H/2 toggle switch has a rating of 15A at 250V AC.

What type of termination does the 656H/2 switch use?

The 656H/2 switch uses Quick Connect - 0.250" (6.3mm) termination style.

What is the operating temperature range for the 656H/2 toggle switch?

The operating temperature range for the 656H/2 toggle switch is -20°C to 55°C.

What is the circuit configuration of the 656H/2 switch?

The 656H/2 switch has a 3PDT circuit configuration.

What are the contact resistance and insulation resistance specifications?

The initial contact resistance is 10 mΩ max., and the insulation resistance is 1,000 MΩ min. at 500 VDC.

Category	Toggle Switches
Manufacturer Name	APEM Inc.
Actuator Length	17.50mm
Actuator Type	Standard Round
Bushing Thread	M12 x 0.75
Circuit	3PDT
Current Rating (Amps)	15A (AC)
Illumination	Non-Illuminated
Insulation Resistance	1,000 MΩ
Mounting Type	Panel Mount
Operating Temperature	-20°C to 55°C
Panel Cutout Dimensions	Circular - 12.20mm Dia
Panel Thickness	4.5 mm
Switch Function	On-On
Tape & Reel	No
Termination Style	Quick Connect - 0.250" (6.3mm)
Torque	1.50 Nm
Voltage Rating	250 V
