| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,000 pcs
|
4000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Termination | |
| Contact Type | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| Pitch | |
| Row Spacing | |
| Tape & Reel |

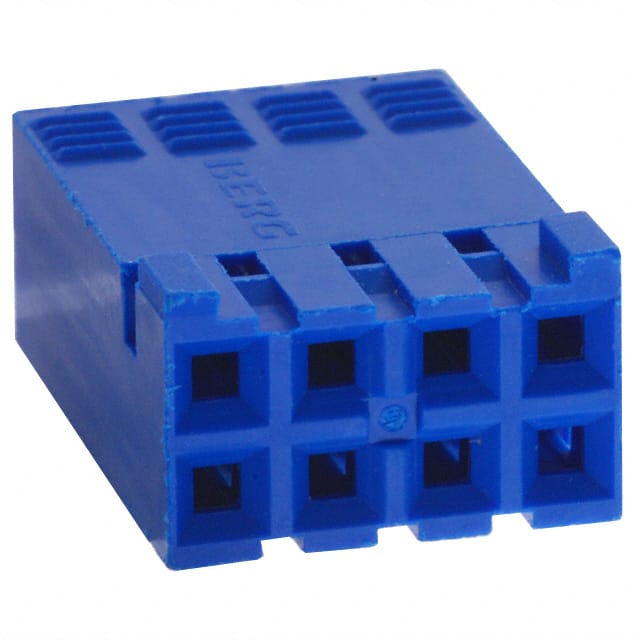

The 65239-004LF is an 8-position, 2-row rectangular receptacle housing from Amphenol ICC. It has a pitch and row spacing of 2.54mm (0.100"). The housing is designed for free hanging (in-line) mounting and accepts female socket contacts via crimp termination. The operating temperature range is -65°C to 125°C, making it suitable for harsh environments. The housing is blue in color. This receptacle housing is used to create cable-to-cable or cable-to-board connections. It requires separate female socket contacts, which are crimped onto wires and inserted into the housing. The 2.54mm pitch is standard for many discrete wire connector systems. The housing is intended for use in applications such as industrial control, automotive, and general signal/power distribution. Note that the housing material and flammability rating are not specified in the available data.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.36 | $0.36 |
| 10+ | $0.36 | $0.36 |
| 25+ | $0.35 | $0.35 |
| 100+ | $0.35 | $0.35 |
| 250+ | $0.31 | $0.31 |
| 1,000+ | $0.31 | $0.31 |
| 3,000+ | $0.29 | $0.29 |
| 5,000+ | $0.27 | $0.27 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8 positions in 2 rows.
2.54mm (0.100") pitch and row spacing.
Free hanging (in-line).
Female socket contacts with crimp termination.
-65°C to 125°C.
Blue.
RoHS3 Compliant (unverified).
