| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
40 pcs
|
40 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Termination | |
| Contact Type | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| Pitch | |
| Row Spacing | |
| Tape & Reel |

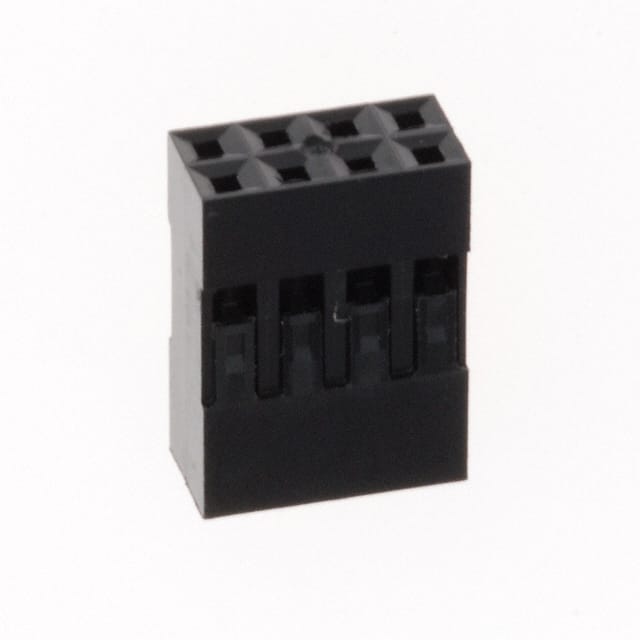

The 65043-033LF is a rectangular connector housing manufactured by Amphenol ICC. It is designed as a receptacle housing with 8 female socket contact positions arranged in 2 rows. The contact pitch and row spacing are both 2.54mm (0.100 inches), providing a compact, industry-standard layout for wire-to-wire or wire-to-board connections.
Mechanically, the housing is a free-hanging (in-line) type, making it suitable for cable assemblies and harness applications. The contacts are terminated via crimp, allowing for flexible wire gauge selection and field installation. The housing is molded in black thermoplastic and has an operating temperature range from -40°C to 105°C.
This connector housing is typically used in signal and low-power interconnects where a reliable, polarized mating interface is required. It accepts female socket contacts (not included), which must be ordered separately and crimped onto wires. The housing provides mechanical retention and polarization for the contact system.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.37 | $1.37 |
| 10+ | $1.20 | $1.20 |
| 25+ | $1.13 | $1.13 |
| 100+ | $1.09 | $1.09 |
| 250+ | $1.03 | $1.03 |
| 500+ | $0.98 | $0.98 |
| 1,000+ | $0.93 | $0.93 |
| 2,000+ | $0.86 | $0.86 |
| 5,000+ | $0.86 | $0.86 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This housing has 8 positions arranged in 2 rows.
The contact pitch is 2.54mm (0.100") and the row spacing is also 2.54mm (0.100").
The operating temperature range is -40°C to 105°C.
The housing uses free hanging (in-line) mounting.
