| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,800 pcs
|
2800 pcs | On Request | 50 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Termination | |
| Contact Type | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Flammability Rating | |
| Insulation Resistance | |
| Insulator Material | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Packaging Type | |
| Panel Cut-out Thickness | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Tape & Reel |

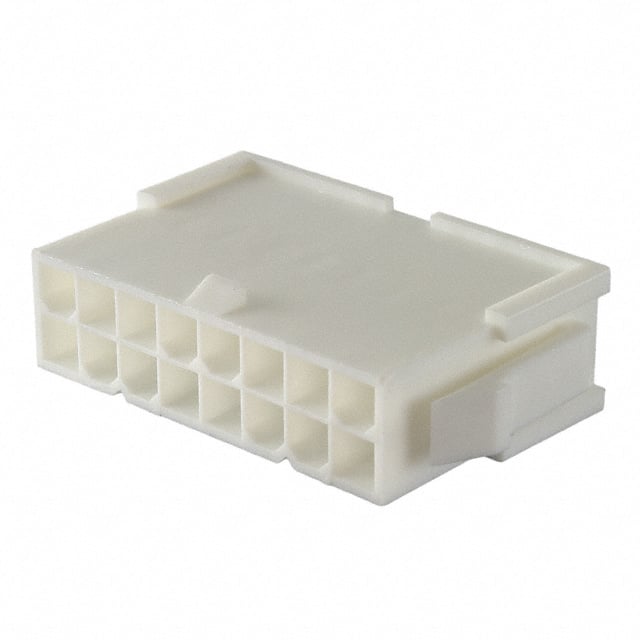

The Würth Elektronik 64901621822 is a WR-MPC4 series 4.20mm pitch male dual row plug housing with integral panel mounting ears. It accommodates 16 positions arranged in 2 rows with a row spacing of 4.20mm. The housing is molded from white Nylon 66 rated UL94 V-0 for flammability. Contacts are male pin type and terminated by crimping, ordered separately. The insulator resistance exceeds 1000 MΩ and the dielectric withstanding voltage is 1500 VAC. Operating temperature range is -40°C to 105°C. The recommended panel cut-out thickness is 1.40 ±0.40 mm. The part is RoHS compliant and lead free. Packaging is in bags.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.98 | $0.98 |
| 10+ | $0.96 | $0.96 |
| 50+ | $0.89 | $0.89 |
| 100+ | $0.78 | $0.78 |
| 300+ | $0.72 | $0.72 |
| 500+ | $0.68 | $0.68 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This connector housing has 16 positions.
The pitch is 4.20mm (0.165").
It is a panel mount housing with locking ramp fastening.
The operating temperature range is -40°C to 105°C.
The insulator is made of Nylon 66 with UL94 V-0 flammability rating.
Yes, it is RoHS compliant and lead free.
