| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
279 pcs
|
279 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
180 pcs
|
180 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
26 pcs
|
26 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
19 pcs
|
19 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
19 pcs
|
19 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Connector Usage | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Layout, Typical | |
| Mounting Type | |
| Number of Columns | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Tape & Reel | |
| Termination |

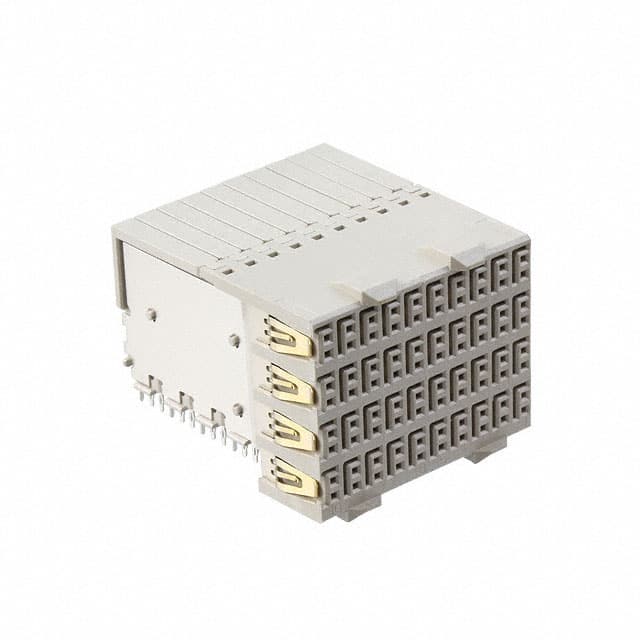

The TE Connectivity 6469001-1 is a high speed receptacle connector designed for daughtercard applications. It features 120 positions arranged in 8 rows with a 2.50mm pitch, providing a compact and reliable interconnection solution.
The connector uses a press-fit termination method and supports board edge, through hole, and right angle mounting. It has gold-plated contacts with a thickness of 30.0µin (0.76µm), ensuring excellent conductivity and corrosion resistance. The contact layout includes 80 single signal contacts and 40 ground contacts, making it suitable for high-speed signal integrity requirements.
This connector is part of the HMZD series and is RoHS3 compliant with an MSL rating of 1 (Unlimited). It is intended for use in backplane and subrack environments where high density and signal performance are critical.
| Qty | Low | High |
|---|---|---|
| 1+ | $29.77 | $29.77 |
| 10+ | $21.59 | $21.59 |
| 20+ | $20.74 | $20.74 |
| 60+ | $20.21 | $20.21 |
| 100+ | $19.66 | $19.66 |
| 260+ | $18.50 | $18.50 |
| 500+ | $18.02 | $18.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It is a receptacle with female sockets, high speed style.
It has 120 positions, all loaded across 8 rows and 10 columns.
The pitch is 2.50mm.
It supports board edge, through hole, and right angle mounting.
The termination is press-fit.
The contact finish is gold with a thickness of 30.0µin (0.76µm).
The layout includes 80 single signal contacts and 40 ground contacts.
