| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
279 pcs
|
279 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | 1011 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Connector Usage | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Layout, Typical | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Columns | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Termination Style |

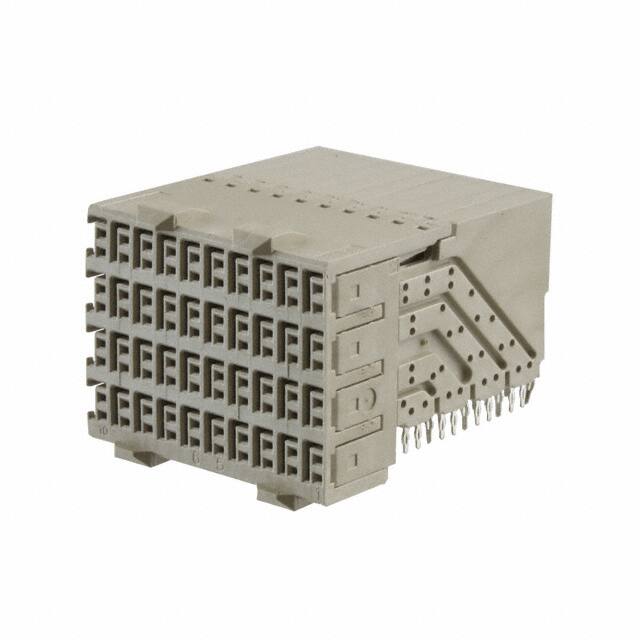

The TE Connectivity 1469001-1 is a high speed receptacle connector designed for daughtercard applications. It features 120 positions (all loaded) arranged in 8 rows and 10 columns with a 2.50mm pitch. The contact layout includes 80 single signal and 40 ground contacts, with gold contact finish of 30.0µin (0.76µm).
This connector uses a press-fit termination style and is mounted via board edge, through hole, right angle orientation. It is designed for high speed signal transmission in backplane systems. The connector is RoHS3 compliant and has a moisture sensitivity level of 1 (unlimited).
Typical applications include high-speed data communication, server, and networking equipment where reliable signal integrity is required. The 8-row design provides high density while maintaining signal integrity.
120 positions, all loaded.
2.50mm (0.098").
Board edge, through hole, right angle mounting with press-fit termination.
80 single signal and 40 ground contacts.
8 rows and 10 columns.
Gold, 30.0µin (0.76µm).
Press-fit.
