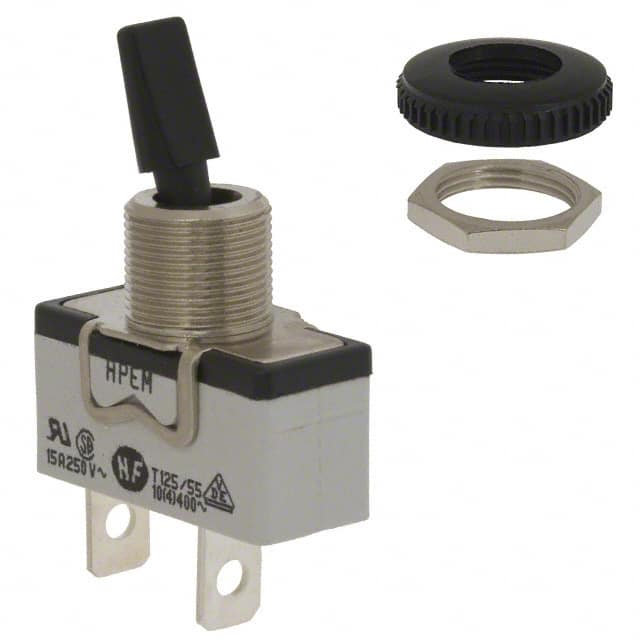

631NH/2 The APEM Inc. 631NH/2 is a single pole, single throw (SPST) toggle switch. It is rated for 15A at 250V and features quick connect terminals for easy installation.
Mfr Part #:

631NH/2

Available from 1 distributors
Mfr Name: APEM Inc.
APEM Inc.
The APEM Inc. 631NH/2 is a single pole, single throw (SPST) toggle switch. It is rated for 15A at 250V and features quick connect terminals for easy installation.
✓ Total Stock: 7 pcs
$ Price Range: $0.75

631NH/2 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
7 pcs
On Request
7 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

631NH/2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Length
Actuator Material
Actuator Type
Bushing Thread
Circuit
Contact Material
Current Rating
Current Rating (Amps)
Illumination
Insulation Resistance
Mounting Type
Operating Temperature
Panel Cutout Dimensions
Panel Thickness
Switch Function
Tape & Reel
Termination Style
Torque
Voltage Rating
View Similar Products (0)

631NH/2 Description

Short technical summary and product information.

The APEM Inc. 631NH/2 is a robust toggle switch designed for reliable operation in various applications. This SPST (Single Pole, Single Throw) switch is rated for a current of 15A and a voltage of 250V.



It features a panel mount design with a M12 x 0.75 bushing thread and a 12.20mm diameter panel cutout. The termination style is Quick Connect - 0.250" (6.3mm), facilitating straightforward wiring. The actuator is flatted and non-illuminated, with a length of 13.50mm.



Constructed with a polyester UL94-V0 case, this switch operates within a temperature range of -20°C to 55°C. The contact resistance is a maximum of 10 mΩ, and insulation resistance is a minimum of 1,000 MΩ at 500 VDC. The dielectric strength is rated at 2,000 Vrms between terminals and 2,500 Vrms between terminals and frame.



This series is known for its high current/voltage ratings and robust mechanism, making it suitable for demanding electrical applications.

631NH/2 Quick Information

Product Type: Toggle Switch
Series: 600H-600NH series
Canonical Name: APEM Inc. 631NH/2 Toggle Switch
Subcategory: Toggle Switch

631NH/2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

631NH/2 Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

631NH/2 Features

  • Single Pole, Single Throw (SPST) configuration.
  • Rated for 15A at 250V AC.
  • Features 0.250" quick connect terminals.
  • Panel mount design with M12 bushing.
  • Operates from -20°C to 55°C.

631NH/2 Applications

  • Suitable for power control circuits.
  • Ideal for industrial equipment.
  • Used in control panel applications.
  • Applicable for general purpose switching.

631NH/2 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the current and voltage rating for the APEM Inc. 631NH/2 toggle switch?

The APEM Inc. 631NH/2 toggle switch is rated for 15A at 250V.

What type of terminals does the 631NH/2 switch use?

The 631NH/2 switch uses Quick Connect terminals measuring 0.250" (6.3mm).

What is the operating temperature range for this toggle switch?

The operating temperature range for the 631NH/2 toggle switch is -20°C to 55°C.

What is the circuit configuration of the 631NH/2 switch?

The 631NH/2 switch has a Single Pole, Single Throw (SPST) circuit configuration.

How is the 631NH/2 toggle switch mounted?

The 631NH/2 toggle switch is designed for panel mounting.
