| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Color | |
| Connector Type | |
| Contact Termination | |
| Contact Type | |
| Fastening Type | |
| Insulation Resistance | |
| Insulator Flammability Rating | |
| Insulator Material | |
| Lead Spacing | |
| Length | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Withstanding Voltage |

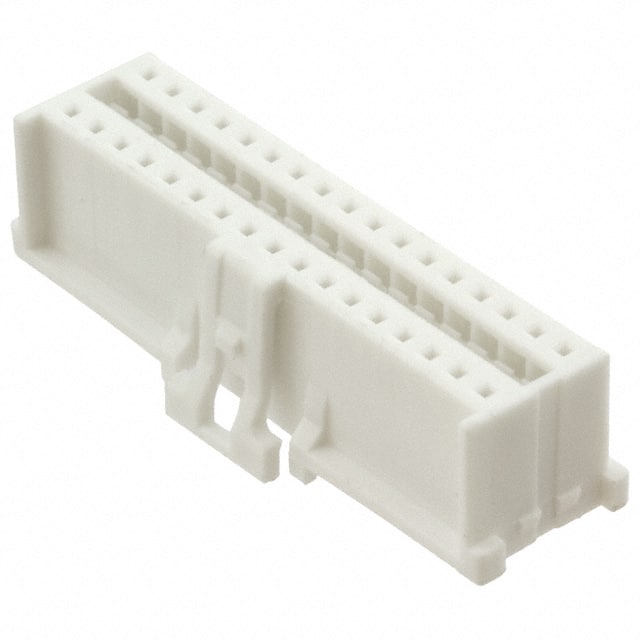

The Würth Elektronik 624034213322 is a 34-position, 2-row female receptacle housing from the WR-WTB series. It features a 2.00mm pitch and 5.00mm row spacing, designed for crimp termination with female socket contacts. The housing is made of white Nylon 66 with a UL94 V-0 flammability rating, ensuring reliable performance in various environments. It operates over a temperature range of -25°C to +85°C and offers an insulation resistance of 1000 MΩ minimum with a withstanding voltage of 1000 V AC. The latch lock fastening type provides secure mating, and the free hanging (in-line) mounting allows for flexible installation. This housing is RoHS3 and REACH compliant, with cULus approval. It is suitable for wire-to-board connections in general electronic equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.18 | $2.18 |
| 10+ | $1.89 | $1.89 |
| 50+ | $1.72 | $1.72 |
| 100+ | $1.39 | $1.39 |
| 250+ | $1.28 | $1.28 |
| 500+ | $1.17 | $1.17 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
34 positions in 2 rows.
2.00mm pitch with 5.00mm row spacing.
Free hanging (in-line) mounting.
-25°C to +85°C.
1000 MΩ minimum.
1000 V AC for 1 minute.
UL94 V-0.
