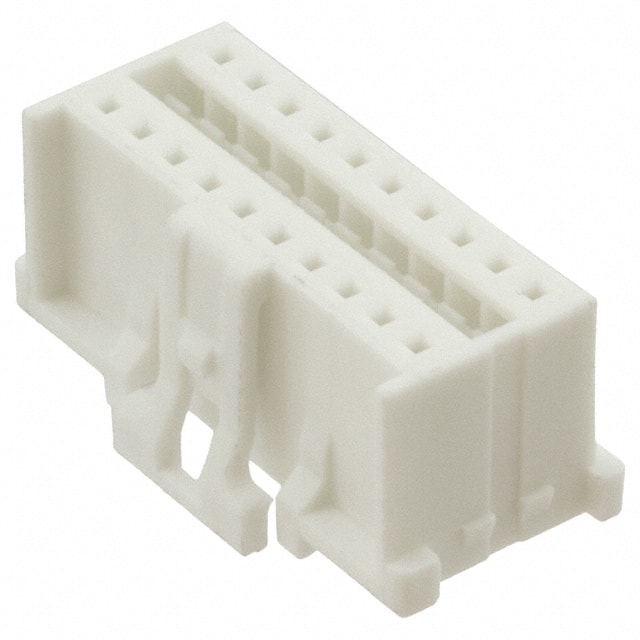

624020213322 20 position 2.00mm pitch 2 row female socket rectangular connector housing from Würth Elektronik. Free hanging (in-line) mounting with crimp termination and latch lock.
Mfr Part #:

624020213322

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
20 position 2.00mm pitch 2 row female socket rectangular connector housing from Würth Elektronik. Free hanging (in-line) mounting with crimp termination and latch lock.
✓ Total Stock: 4,000 pcs
$ Price Range: $0.79 - $1.47

624020213322 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Chanetech ✓
Non-Authorised Inventory information
4,000 pcs
On Request
4000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

624020213322 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Color
Connector Type
Contact Termination
Contact Type
Fastening Type
Industrial Grade
Insulation Resistance
Insulator Flammability Rating
Insulator Material
Lead Spacing
Medical Grade
Military Grade
Mounting Type
Number of Positions
Number of Rows
Operating Temperature
Pitch
Row Spacing
Withstanding Voltage
View Similar Products (0)

624020213322 Description

Short technical summary and product information.

The Würth Elektronik 624020213322 is a 20 position rectangular connector housing designed for wire-to-board applications. It features a 2.00mm pitch with 2 rows spaced at 5.00mm, accommodating female socket contacts via crimp termination. The housing is free hanging (in-line) and secured with a latch lock fastening system.



The insulator is molded from Nylon 66 with a UL94 V-0 flammability rating and is white in color. It operates over a temperature range of -25°C to 85°C. Electrical characteristics include a minimum insulation resistance of 1000 MΩ and a withstanding voltage of 1000 V AC for 1 minute.



Dimensions are 21.6mm body length and 9.3mm body width. The product is packaged in a bag. Compliance includes RoHS3, REACH, and cULus (E323964). This housing is suitable for use in consumer electronics, appliances, and industrial control systems where a reliable wire-to-board connection is required.

624020213322 Quick Information

Product Type: Rectangular Connector Housing
Series: WR-WTB
Canonical Name: 20 Position 2.00mm Pitch 2 Row Female Socket Rectangular Connector Housing
Subcategory: Wire-to-Board Connector Housing

624020213322 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Compliant

624020213322 Estimated Pricing

Qty Low High
1+ $1.47 $1.47
10+ $1.27 $1.27
50+ $1.16 $1.16
100+ $0.94 $0.94
250+ $0.86 $0.86
500+ $0.79 $0.79

Estimated market price range - modelled values for guidance only, not live distributor offers.

624020213322 Features

  • 20 position dual row connector housing.
  • 2.00mm pitch with 5.00mm row spacing.
  • Free hanging in-line mounting style.
  • Crimp termination for female socket contacts.
  • Latch lock fastening for secure mating.

624020213322 Applications

  • Used in wire-to-board interconnect systems.
  • Suitable for consumer electronics and appliances.
  • Ideal for automotive interior applications.
  • Common in industrial control modules.

624020213322 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 624020213322 have?

20 positions.

What is the pitch of this connector housing?

2.00mm.

What mounting type does this housing support?

Free hanging (in-line).

What is the operating temperature range?

-25°C to 85°C.

What is the insulation resistance?

1000 MΩ minimum.

What is the flammability rating of the insulator?

UL94 V-0.

Is this connector housing RoHS compliant?

Yes, RoHS3 compliant.
