| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
869 pcs
|
869 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Termination | |
| Contact Type | |
| Fastening Type | |
| Insulation Resistance | |
| Insulator Material | |
| Lead Spacing | |
| Length | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Withstanding Voltage |

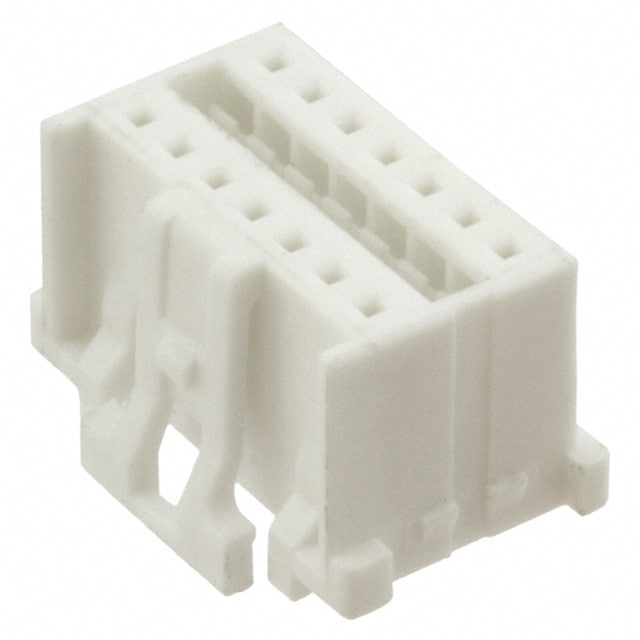

The Würth Elektronik 624014213322 is a 14-position receptacle housing with a 2.00mm pitch. It features a female socket contact type and uses a crimp termination method. The housing is free hanging (in-line) and secured with a latch lock. It is made of white Nylon 66 insulator material with UL94 V-0 flammability rating. The operating temperature range is -25°C to 85°C. Electrical specifications include minimum insulation resistance of 1000 MΩ and withstanding voltage of 1000V AC for 1 minute. The housing measures 15.6mm in length. It is RoHS and REACH compliant. This housing is suitable for wire-to-board or wire-to-wire applications requiring a compact 2.00mm pitch connector system.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.02 | $1.02 |
| 10+ | $0.89 | $0.89 |
| 50+ | $0.81 | $0.81 |
| 100+ | $0.65 | $0.65 |
| 500+ | $0.60 | $0.60 |
| 1,000+ | $0.55 | $0.55 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
14 positions in 2 rows.
2.00mm pitch.
Free hanging (in-line).
Latch lock.
Female socket contacts.
-25°C to 85°C.
UL94 V-0.
