| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,023 pcs
|
1023 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Termination | |
| Contact Type | |
| Dielectric Withstanding Voltage | |
| Flammability Rating | |
| Insulator Material | |
| Insulator Resistance | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Packaging Type | |
| Pitch | |
| SVHC Present | |
| Standard Certified | |
| Tape & Reel |

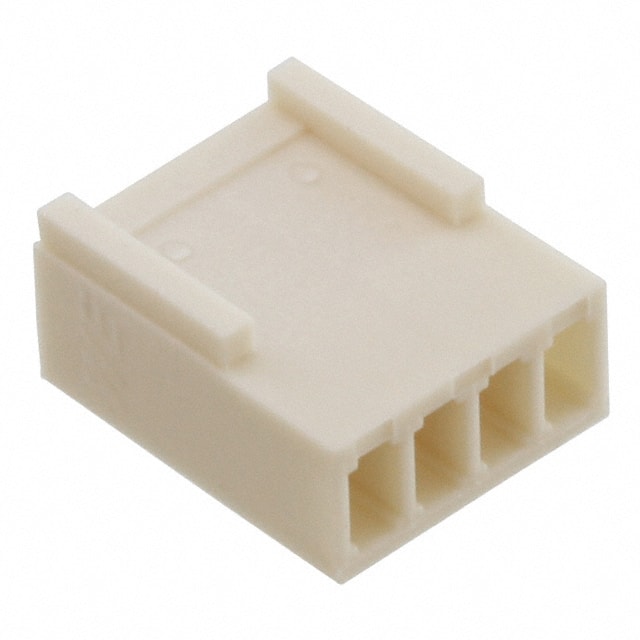

The Würth Elektronik 61900411621 is a 4 position rectangular connector housing designed for use with 2.54mm pitch female socket crimp contacts. This housing features a beige nylon 66 insulator with a UL94-V0 flammability rating, ensuring reliable performance in a variety of environments. It is rated for an operating temperature range of -40°C to 105°C and offers an insulator resistance greater than 1000 MOhm with a dielectric withstanding voltage of 1000 VAC.
This connector housing is intended for free hanging (in-line) mounting and uses crimp termination for the contacts. It is RoHS compliant and certified under standard E323964. The housing is packaged in a bag and is suitable for general electronics equipment applications. For use in high-reliability fields such as automotive, medical, or aerospace, written approval from Würth Elektronik is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.18 | $0.18 |
| 10+ | $0.16 | $0.16 |
| 50+ | $0.15 | $0.15 |
| 100+ | $0.12 | $0.12 |
| 500+ | $0.11 | $0.11 |
| 1,000+ | $0.10 | $0.10 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54mm (0.100").
It has 4 positions in a single row.
The operating temperature range is -40°C to 105°C.
The insulator material is nylon 66 with a UL94-V0 flammability rating.
Yes, it is RoHS3 compliant and lead free as stated in the datasheet.
The dielectric withstanding voltage is 1000 VAC.
It is designed for free hanging (in-line) mounting.
