| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
345 pcs
|
345 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Termination | |
| Contact Type | |
| Dielectric Withstanding Voltage | |
| Flammability Rating | |
| Insulator Material | |
| Insulator Resistance | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Packaging Type | |
| Pitch | |
| Standard Certified | |
| Tape & Reel |

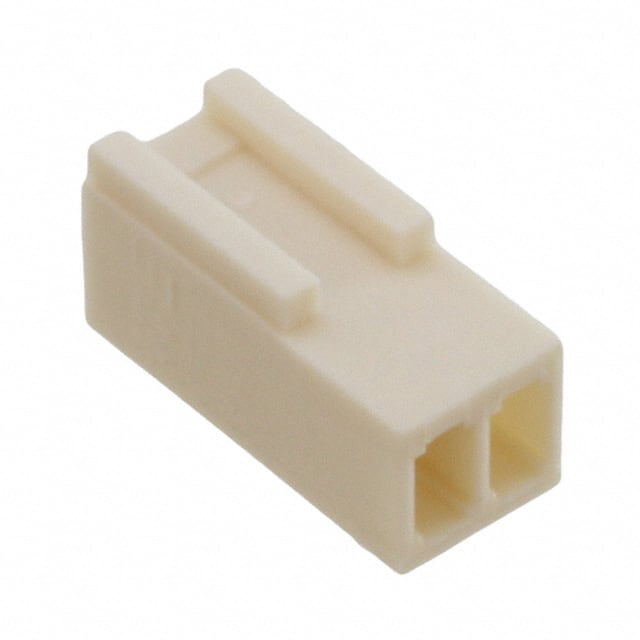

The Würth Elektronik 61900211621 is a 2 position, single row rectangular connector housing designed for wire-to-board or wire-to-wire applications. It features a 2.54mm pitch and accepts female socket contacts with crimp termination. The housing is free hanging (in-line) and made of beige Nylon 66 with a UL94-V0 flammability rating.
This connector housing is rated for an operating temperature range of -40°C to 105°C. It offers an insulator resistance greater than 1000 MOhm and a dielectric withstanding voltage of 1000 VAC per minute. The part is RoHS compliant and lead free, with a standard certified rating of E323964.
Packaged in a bag, this housing is suitable for general electronics equipment. It is not recommended for use in high-safety or critical applications without written approval from Würth Elektronik.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.14 | $0.14 |
| 10+ | $0.12 | $0.12 |
| 50+ | $0.11 | $0.11 |
| 100+ | $0.09 | $0.09 |
| 500+ | $0.08 | $0.08 |
| 1,000+ | $0.08 | $0.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 2 positions in a single row.
The pitch is 2.54mm (0.100 inches).
It is free hanging (in-line) mounting.
The operating temperature range is -40°C to 105°C.
Yes, it is RoHS compliant and lead free.
The insulator is Nylon 66 with a UL94-V0 flammability rating.
