Mfr Part #:

6-1460820-1

Available from 1 distributors

Mfr Name: TE Connectivity

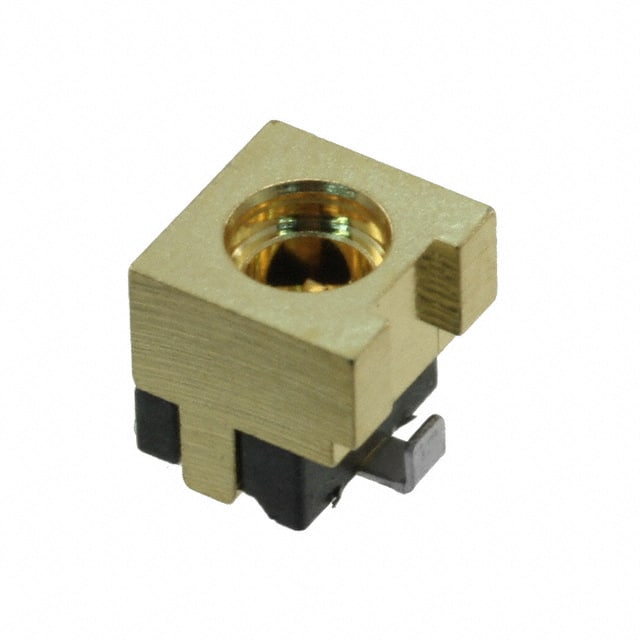

MMCX jack, female socket, 50 Ohm impedance, 6 GHz frequency, surface mount with solder termination.

✓ Total Stock: 54 pcs

$ Price Range: $2.76 - $5.00

6-1460820-1 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Tokyo Device ✓ Non-Authorised Inventory information	54 pcs On Request	54 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

6-1460820-1 Description

Short technical summary and product information.

The TE Connectivity 6-1460820-1 is an MMCX coaxial connector configured as a jack with a female socket. It is designed for 50 Ohm impedance and supports frequencies up to 6 GHz, making it suitable for RF applications. The connector features a snap-on fastening type for quick and secure mating. It is surface mount (SMD) with solder termination for both the center contact and shield, enabling automated assembly. The single-port design is compact and ideal for space-constrained PCB layouts.

6-1460820-1 Quick Information

Product Type: Coaxial Connector (RF) Assembly

Canonical Name: MMCX Jack, Female Socket, 50 Ohm, Surface Mount

Subcategory: MMCX Connector

6-1460820-1 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

6-1460820-1 Estimated Pricing

Qty	Low	High
1+	$5.00	$5.00
10+	$4.43	$4.43
25+	$3.96	$3.96
100+	$3.63	$3.63
250+	$3.38	$3.38
500+	$3.26	$3.26
1,000+	$3.00	$3.00
1,500+	$2.84	$2.84
3,000+	$2.76	$2.76

Estimated market price range - modelled values for guidance only, not live distributor offers.

6-1460820-1 Features

MMCX jack with female socket.
50 Ohm characteristic impedance.
6 GHz maximum operating frequency.
Surface mount with solder termination.
Snap-on fastening for secure mating.

6-1460820-1 Applications

RF signal connections in wireless devices.
Antenna interfaces for IoT modules.
Test and measurement equipment interconnects.
Compact PCB designs requiring low profile.

6-1460820-1 FAQs

5 frequently asked questions generated from this part’s specifications.

What is the mounting type of this connector?

Surface Mount (SMD).

What is the impedance of the 6-1460820-1?

50 Ohm.

What is the maximum frequency rating?

6 GHz.

What connector style is this?

MMCX.

What termination method is used?

Solder for both contact and shield.

6-1460820-1 Alternate Parts

Same form/fit/function or matching attribute configuration across different manufacturers.

View All Alternate Parts

MMCX-J-P-H-ST-SM1

Samtec Inc.

MMCX-J-P-H-ST-SM1 is a 50 Ohm MMCX jack connector with female socket, straight orientation, and surface mount termination. It features gold-plated contacts and is rated for frequencies up to 6 GHz.

View Part

MMCX-J-P-H-ST-SM1-K
