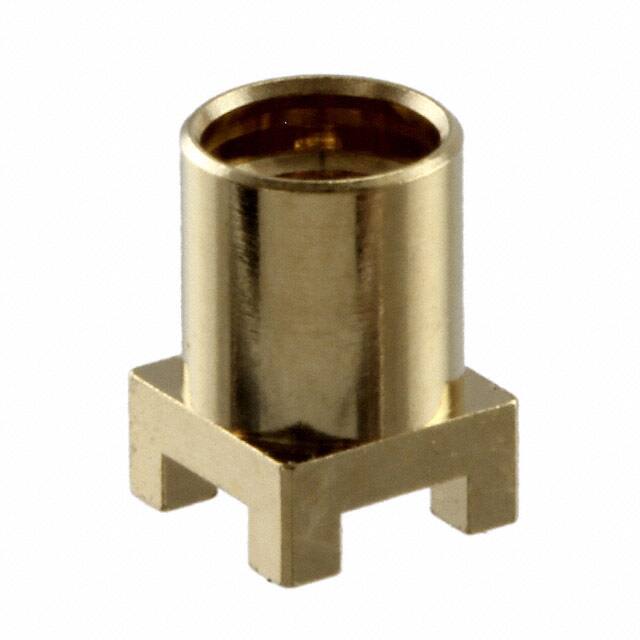

The MMCX-J-P-H-ST-SM1-K is a high-performance MMCX connector from Samtec designed for RF applications up to 6 GHz. This jack (female socket) connector features a characteristic impedance of 50 Ohms, making it suitable for a wide range of microwave and wireless systems.
The connector offers a straight orientation and utilizes a snap-on fastening mechanism for secure mating. The center contact is made of beryllium copper with a 30 µ" (0.76 µm) gold plating, while the outer contact has a 3 µ" (0.08 µm) gold plating, ensuring excellent conductivity and corrosion resistance.
For mounting, the connector uses surface mount technology with solder termination. It is a single-port design, ideal for compact PCB layouts where space is at a premium. The gold housing color and robust construction provide reliable performance in demanding environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.67 | $2.67 |
| 100+ | $2.66 | $2.66 |
| 300+ | $2.59 | $2.59 |
| 500+ | $2.54 | $2.54 |
| 1,000+ | $2.33 | $2.33 |
| 2,000+ | $2.22 | $2.22 |
| 5,000+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
50 Ohms.
6 GHz.
Surface mount (SMD).
Solder termination.
Snap-On.
Straight.
Center contact: 30 µ" (0.76 µm) Gold; Outer contact: 3 µ" (0.08 µm) Gold.
