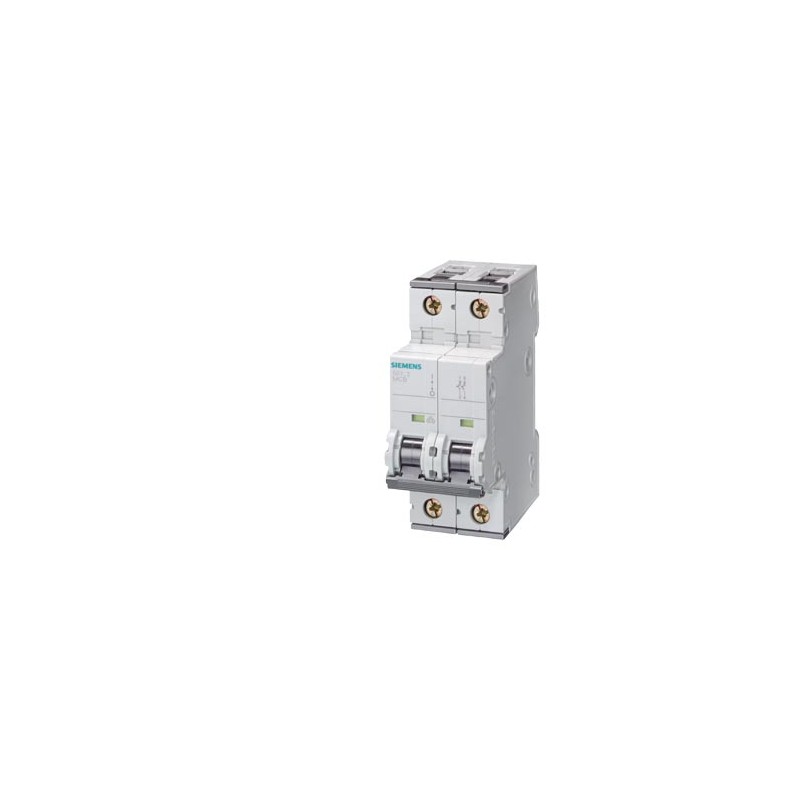

The Siemens 5SY5201-7 is a miniature circuit breaker from the SENTRON product line, designed for reliable power distribution and low voltage switchgear applications.
This 2-pole circuit breaker features a Type C tripping characteristic and a rated operational current of 1A at 35°C, with a switching capacity of 10kA according to EN 60898 and 15kA according to IEC 60947-2. It supports AC supply voltages up to 400V and DC supply voltages up to 440V, with a maximum DC operating voltage of 500V. The device has an insulation voltage (Ui) of 440V AC and 250V DC.
With an IP20 protection class when connected, this circuit breaker is suitable for industrial environments with a degree of pollution of 3 and overvoltage category III. It has a mechanical service life of 10,000 switching cycles and features touch protection for enhanced safety. The unit is designed for combined terminal connections at both the top and bottom.
This product is supplied in its original packaging and is covered by SIEMENS warranties and certifications. It is part of the POWER DISTRIBUTION AND LOW VOLTAGE SWITCHGEAR category.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Siemens 5SY5201-7 circuit breaker has 2 poles.
The tripping characteristic is Type C.
The rated operational current at 35°C is 1A.
The AC switching capacity according to EN 60898 is 10 kA.
The DC switching capacity according to IEC 60947-2 is 15 kA.
The rated supply voltage is 400V AC and 440V DC.
The protection class is IP20 with connected conductors.
