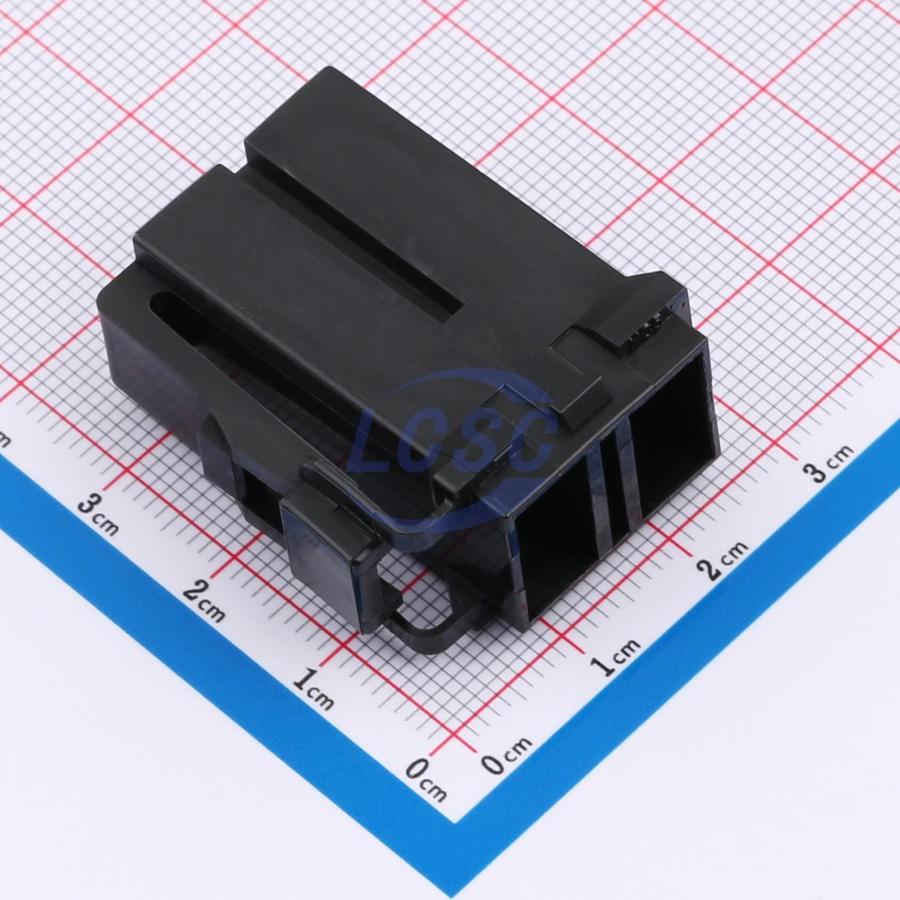

The YAZAKI 7123-4123-30 is a 2-pole L-type connector housing designed for wire harness applications. Constructed from durable NYLON 66 material, it features a black color and a compact size with dimensions of 48.00mm in length, 20.00mm in width, and 27.50mm in height.
This housing supports a tab size of 9.50mm and has a clip installation structure for secure mounting. It is rated for a substantial allowable current of 60A (reference) and maintains low voltage low current resistance of 2milli ohm maximum (initial). Electrical performance is further supported by an insulation resistance of 100 Megohm minimum (at 500VDC) and a withstand voltage of 1000V AC for 1 minute.
The operating temperature range for this connector housing is broad, spanning from -40°C to 120°C, making it suitable for various environmental conditions. It is classified as unsealed and male in configuration.
Key specifications include 2 poles, a 9.50mm tab size, and a robust NYLON 66 construction. The product standard number is CE24-EN-0031. Compatible terminals include part numbers 7114-3250 and 7114-3251, along with dummy plugs and installation part 7157-6420-80.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.25 | $0.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The allowable current is 60A (reference).
The operating temperature range is -40 to 120°C.
The insulation resistance is 100 MOhm minimum at 500 VDC.
The withstand voltage is 1000 VAC for 1 minute.
The housing is made of black NYLON 66.
The tab size is 9.5 mm.
Yes, it includes a clip installation structure.
