| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
48 pcs
|
48 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Height off PCB, Vertical | |
| Actuator Material | |
| Actuator Orientation | |
| Actuator Type | |
| Circuit | |
| Contact Rating @ Voltage | |
| Features | |
| Housing Material | |
| Illumination | |
| Ingress Protection | |
| Insulation Resistance | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Outline | |
| Switch Function | |
| Tape & Reel | |
| Termination Style |

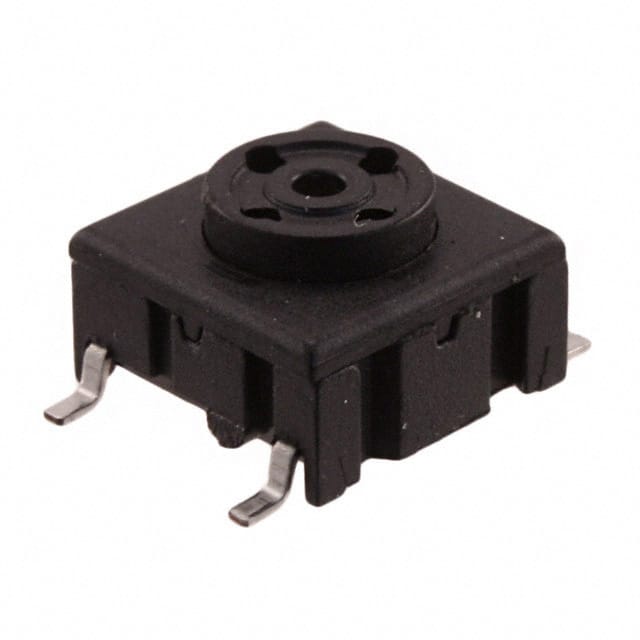

This MEC Switches 5ESH935 is a high-performance tactile switch designed for demanding applications. It features a durable PPS housing and silicone rubber sealing, providing IP67 ingress protection against dust and water.
The switch offers a SPST-NO (Single Pole Single Throw - Normally Open) configuration with a contact rating of 0.05A at 24VDC. It boasts a mechanical life of over 10,000,000 cycles for NO function, ensuring long-term reliability. The surface mountable design with gull wing termination style facilitates integration into PCB assemblies.
Key electrical specifications include a contact resistance typically of 10 mΩ and insulation resistance greater than 10 MΩ. The operating temperature range for non-illuminated versions is -40°C to +160°C, making it suitable for harsh environments. The switch is designed for through-hole or surface mount soldering processes according to industry standards.
With its robust construction and high reliability, the 5ESH935 is well-suited for various industrial and commercial applications requiring a dependable tactile switching solution.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The switch operates within a temperature range of -40°C to +160°C when non-illuminated and -30°C to +85°C when illuminated.
The switch has an IP67 sealing rating, making it dust tight and waterproof.
The recommended load is 0.5-50 mA at 24 VDC for both gold and silver contacts.
The contact resistance is typically below 10 milliohms, with a maximum of 30 milliohms.
The switch is rated for over 10 million cycles of operation.
