5CEBA7F27C8N Intel Cyclone V E FPGA with 149500 logic elements, 336 I/O pins, and 7.9 Mb embedded RAM in a 672-BGA package.
Mfr Part #:

5CEBA7F27C8N

Available from 1 distributors
Mfr Name: Intel
Intel
Intel Cyclone V E FPGA with 149500 logic elements, 336 I/O pins, and 7.9 Mb embedded RAM in a 672-BGA package.
✓ Total Stock: 3,500 pcs

5CEBA7F27C8N Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
3,500 pcs
On Request
3500 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5CEBA7F27C8N Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Failure Rate
Mounting Type
Number of I
Number of LABs
Number of Logic Elements
Operating Temperature
Supplier Device Package
Total RAM Bits
Voltage
View Similar Products (0)

5CEBA7F27C8N Description

Short technical summary and product information.

The 5CEBA7F27C8N is a Cyclone V E series field-programmable gate array (FPGA) from Intel. It contains 149,500 logic elements and 56,480 logic array blocks (LABs/CLBs), providing substantial programmable logic capacity for complex digital designs. The device also integrates 7,880,704 bits of embedded RAM for data buffering and on-chip storage.

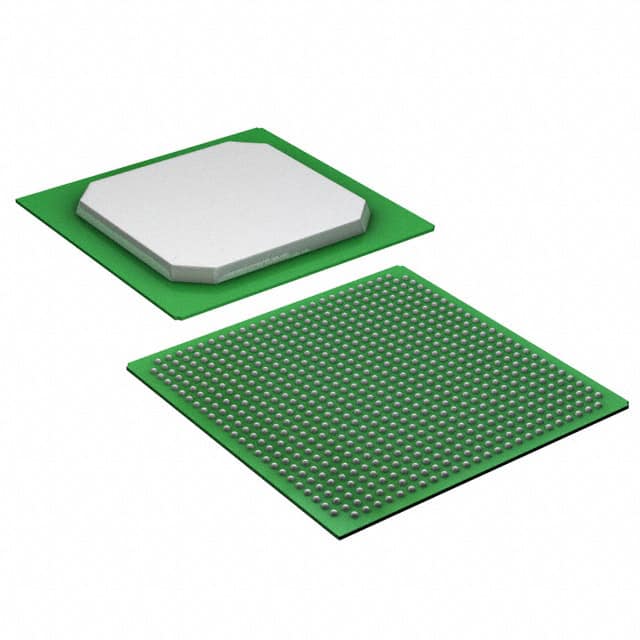

Designed for surface mount assembly, the FPGA is supplied in a 672-ball BGA package with a fine-pitch 27x27 mm FBGA footprint (supplier device package 672-FBGA). It supports 336 user I/O pins, offering ample connectivity for board-level interfaces. The operating voltage range is 1.07 V to 1.13 V, and it is specified for commercial temperature operation from 0°C to 85°C (junction).



The Cyclone V E family targets cost-sensitive, high-volume applications requiring moderate logic density and low power consumption. Typical uses include communications equipment, industrial control, and embedded systems where programmable logic enables flexible hardware acceleration and interface bridging. The available I/O count and RAM resources allow integration of processor peripherals and data processing blocks.

5CEBA7F27C8N Quick Information

Product Type: Field Programmable Gate Array (FPGA)
Series: Cyclone V E
Canonical Name: Intel Cyclone V E FPGA 5CEBA7F27C8N
Subcategory: Cyclone V E FPGA

5CEBA7F27C8N Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

5CEBA7F27C8N Features

  • 149500 logic elements for complex digital designs.
  • 336 user I/O pins in 672-BGA package.
  • 7.9 Mb embedded RAM for data buffering.
  • Operates from 1.07V to 1.13V supply.
  • Surface mount FBGA footprint (27x27 mm).

5CEBA7F27C8N Applications

  • Complex logic designs in communications systems.
  • Industrial automation and control applications.
  • Embedded vision and video processing.
  • FPGA prototyping and production systems.

5CEBA7F27C8N FAQs

7 frequently asked questions generated from this part’s specifications.
How many logic elements does the 5CEBA7F27C8N have?

149,500 logic elements.

How many I/O pins are available on the 5CEBA7F27C8N?

336 I/O pins.

What is the supply voltage range for the 5CEBA7F27C8N?

1.07V to 1.13V.

What package does the 5CEBA7F27C8N use?

672-BGA with supplier device package 672-FBGA (27x27 mm).

What is the total RAM capacity of the 5CEBA7F27C8N?

7,880,704 bits (approximately 7.9 Mb).

What is the operating temperature range for the 5CEBA7F27C8N?

0°C to 85°C (junction temperature).

Which FPGA series is the 5CEBA7F27C8N part of?

Cyclone V E series.
