PUMD10,115
NXP Semiconductors
The NXP Semiconductors PUMD10,115 is a pre-biased bipolar transistor array featuring 1 NPN and 1 PNP transistor. It operates at up to 50V and 100mA.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
870 pcs
|
870 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Industrial Grade | |
| Medical Grade | |
| Military Grade | |
| Storage Temperature | |
| Tape & Reel |
The Texas Instruments 5962-0720401VXC is a high-performance, radiation-tolerant, 14-bit digital-to-analog converter (DAC) designed for demanding applications, particularly in space satellite systems. It boasts a high 400 MSPS update rate, making it suitable for high-speed digital data transmission.
The DAC5675A-SP, which this part is related to, features an LVDS-compatible input interface for efficient data transfer. It offers differential scalable current outputs ranging from 2 to 20 mA, allowing for flexible system integration. The device operates from a single 3.3-V supply and includes an on-chip 1.2-V reference.
Key performance metrics include a Spurious-Free Dynamic Range (SFDR) of 69 dBc at 70 MHz IF and 400 MSPS, and a W-CDMA Adjacent Channel Power Ratio (ACPR) of 73 dBc at 30.72 MHz IF. The power dissipation is 660 mW at 400 MSPS.

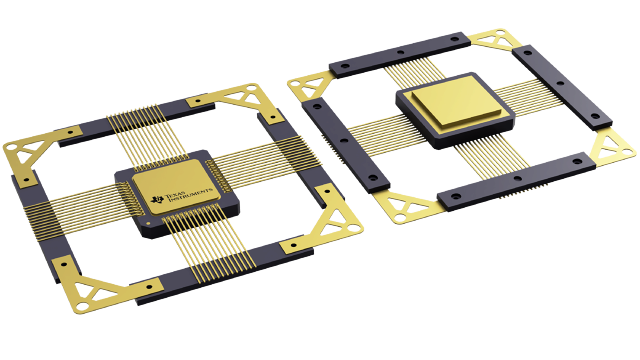

This DAC is housed in a 52-pin Ceramic Quad Flat Pack (CFP) (HFG) package. It is qualified over a reduced temperature range of -55°C to 115°C for improved dynamic performance. The part is also QMLV (QML Class V) MIL-PRF-38535 Qualified.
| Qty | Low | High |
|---|---|---|
| 1+ | $9,501.54 | $9,501.54 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 5962-0720401VXC has a resolution of 14-bit.
The maximum update rate for this DAC is 400 MSPS.
The operating temperature range for the 5962-0720401VXC is -55°C to 115°C.
The 5962-0720401VXC operates with a single 3.3V supply.
The typical power dissipation is 660 mW when the clock frequency is 400 MSPS and the output frequency is 20 MHz.
The typical Spurious-Free Dynamic Range (SFDR) is 69 dBc to Nyquist, with a 70 MHz IF and 400 MSPS.
The 5962-0720401VXC comes in a 52-pin CFP (HFG) package.
